DISASSEMBLY AND REASSEMBLY - 2.4L Engine: Notes

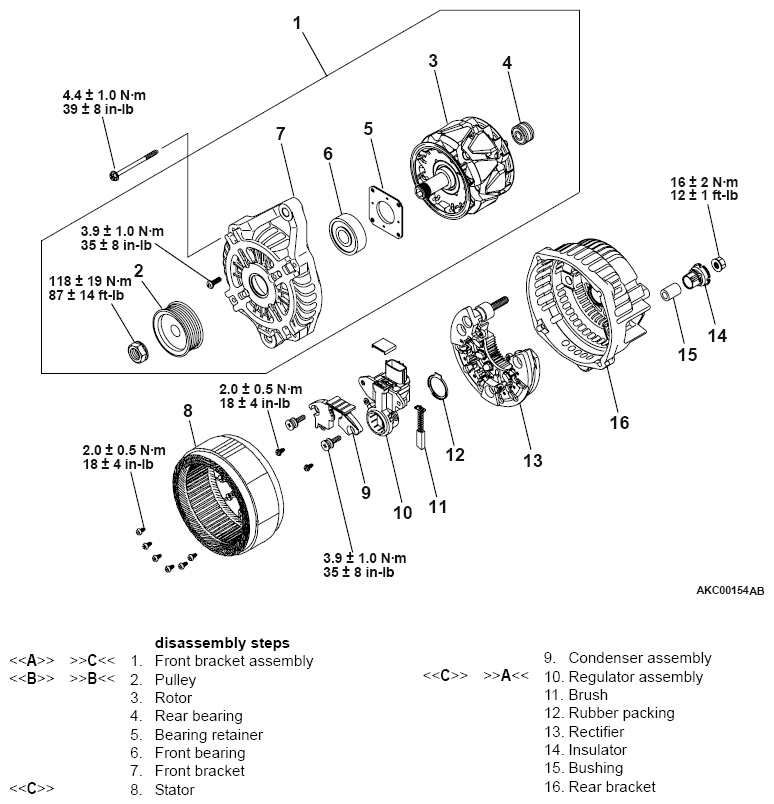

Fig 1: Disassembling/Reassembling Generator Assembly With Torque Specification - 2.4L Engine

G09664715

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
