Circuit Diagrams: Stoplight

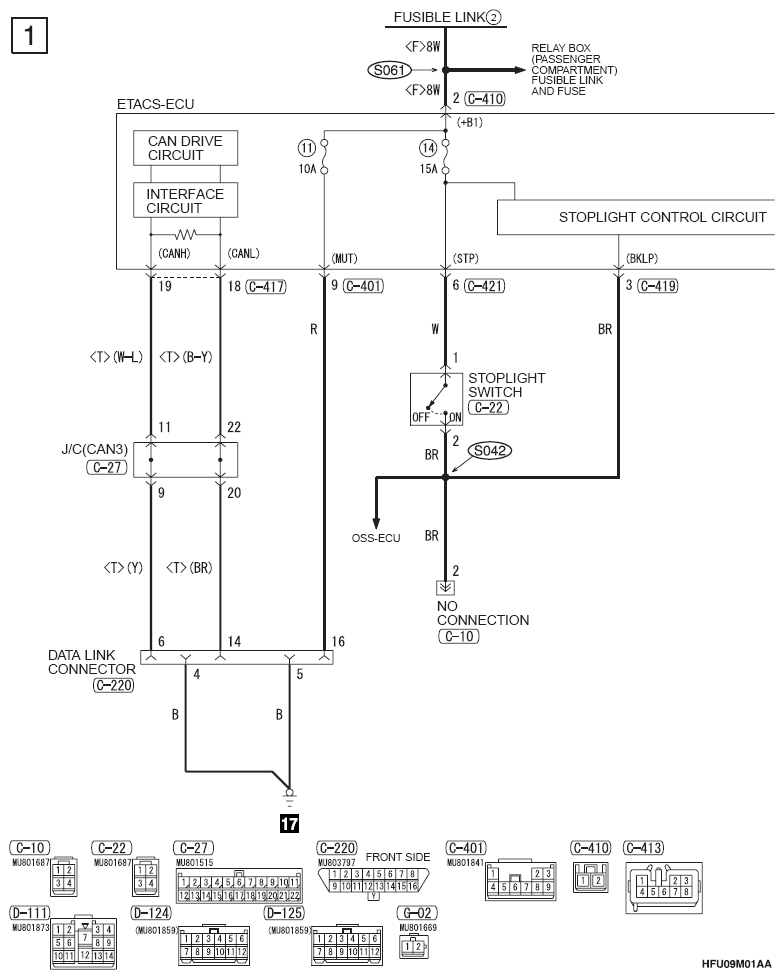

Fig 1: Stoplight - Circuit Diagram (1 Of 2)
G09621621Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

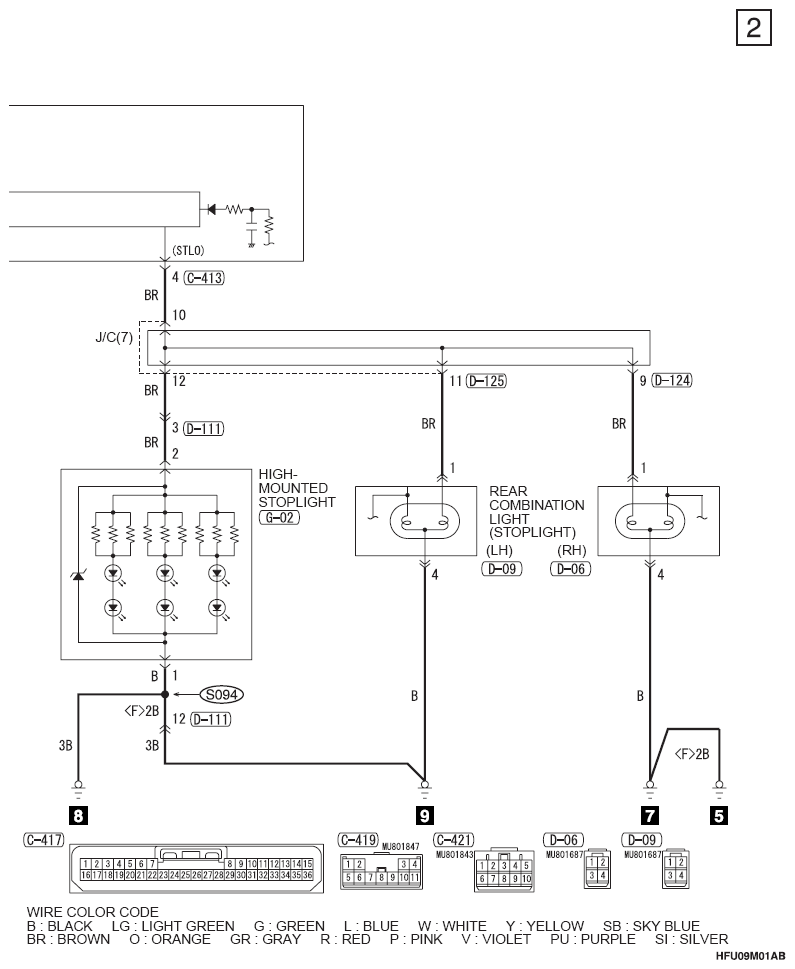

Fig 2: Stoplight - Circuit Diagram (2 Of 2)
G09621622Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
