Power Liftgate

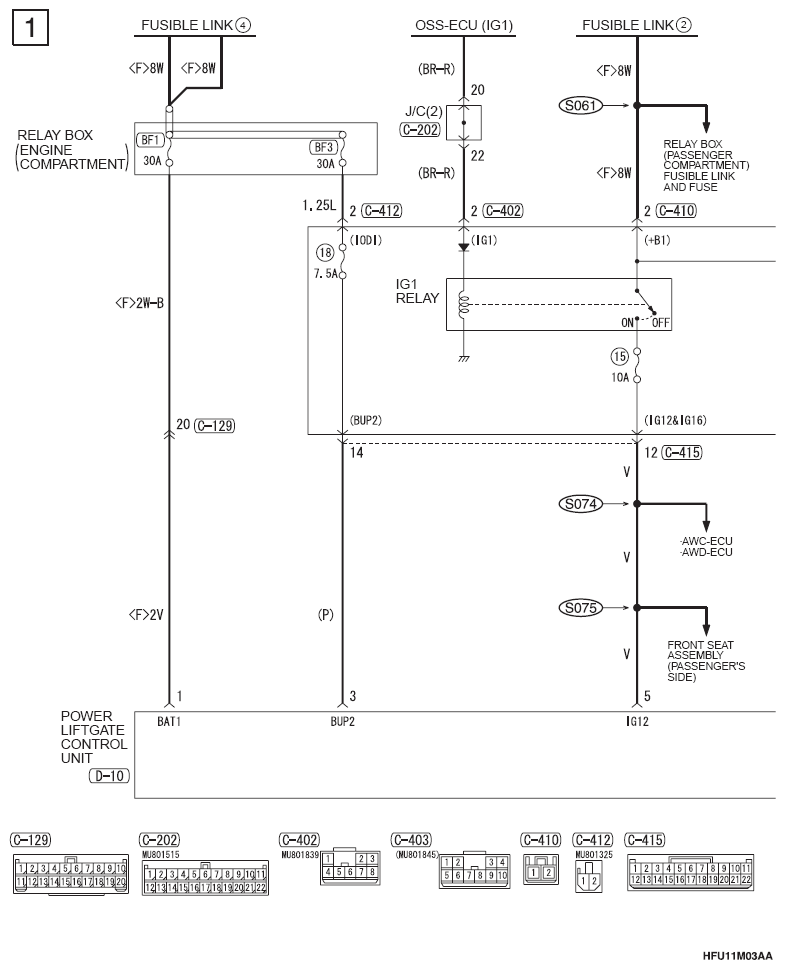

Fig 1: Power Liftgate - Circuit Diagram (1 Of 8)

G09621663

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

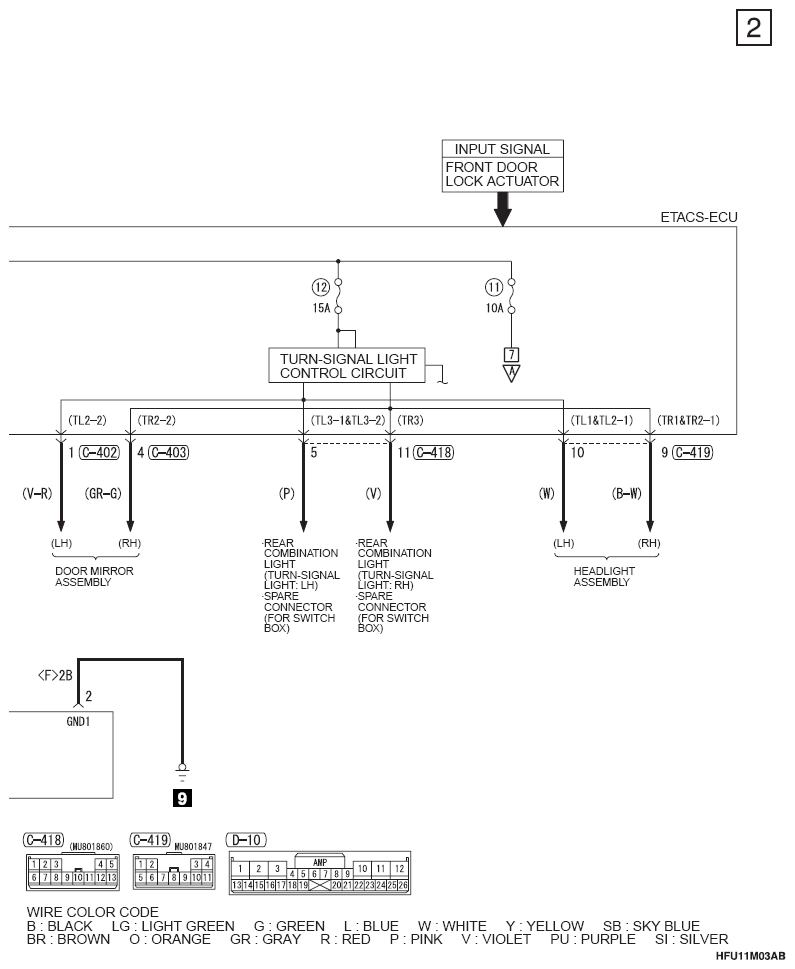

Fig 2: Power Liftgate - Circuit Diagram (2 Of 8)

G09621664

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

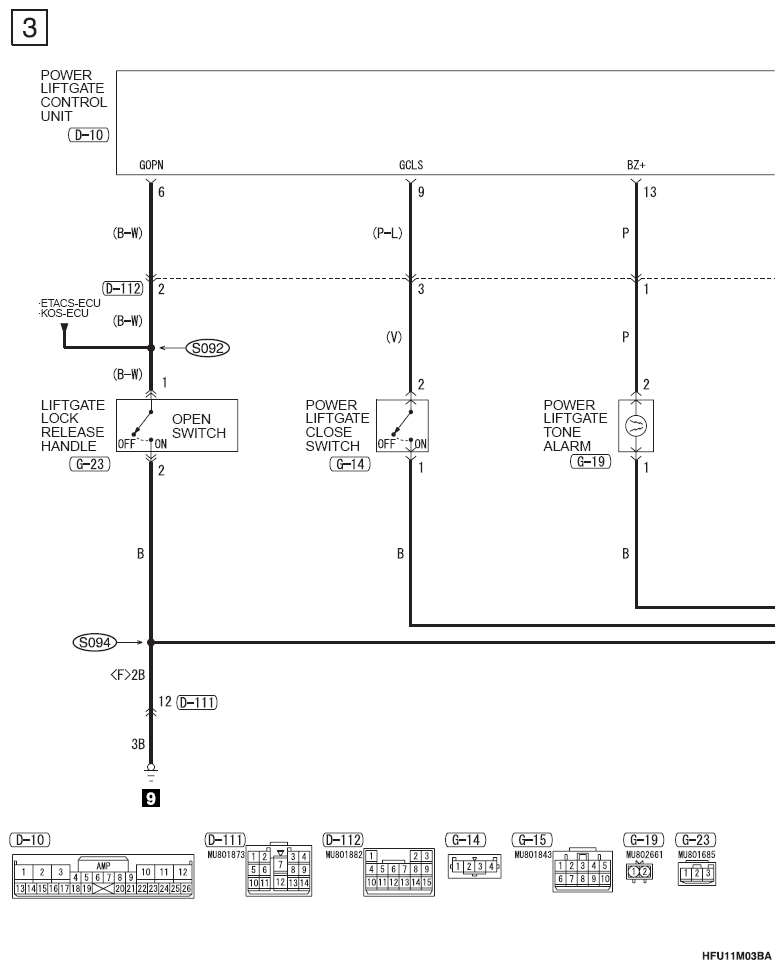

Fig 3: Power Liftgate - Circuit Diagram (3 Of 8)

G09621665

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

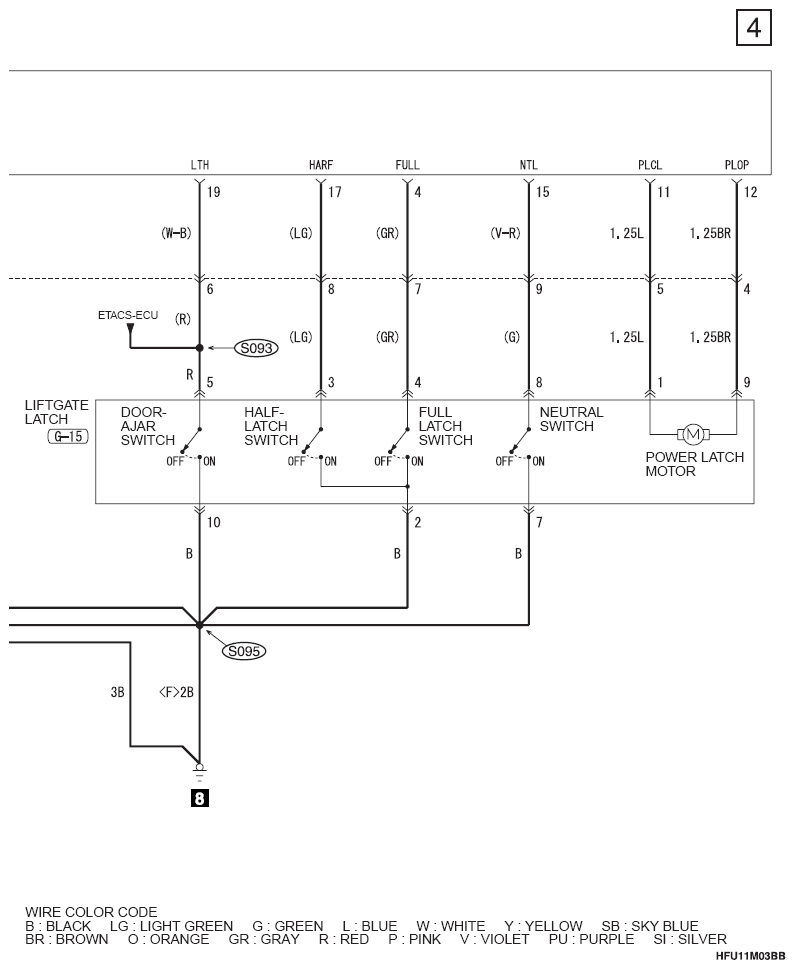

Fig 4: Power Liftgate - Circuit Diagram (4 Of 8)

G09621666

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

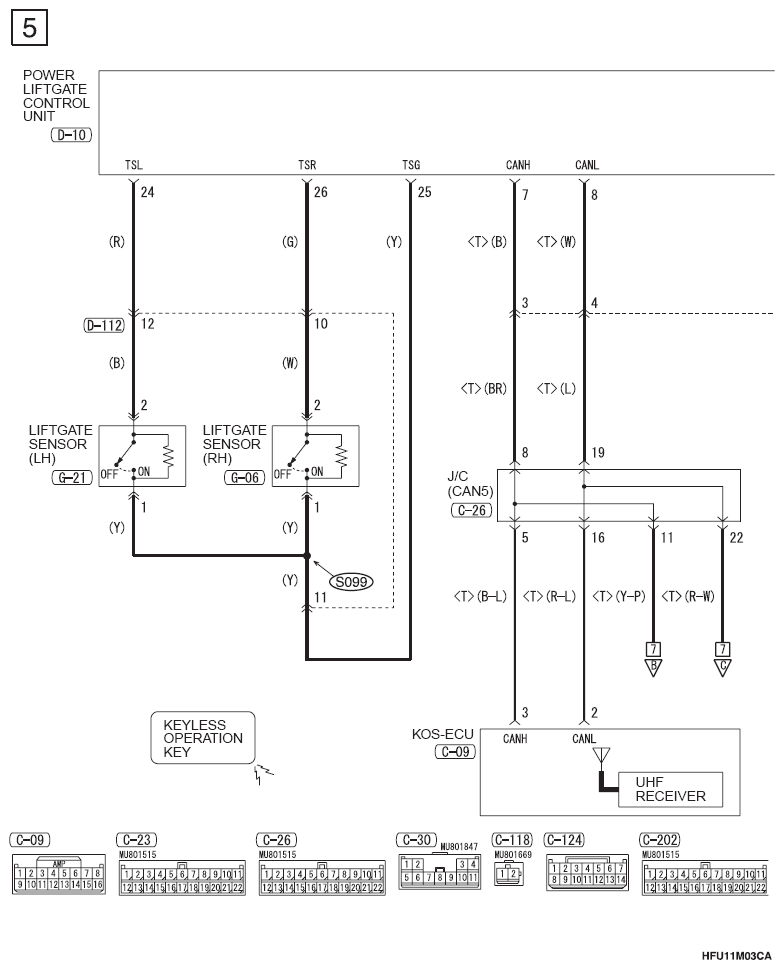

Fig 5: Power Liftgate - Circuit Diagram (5 Of 8)

G09621667

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

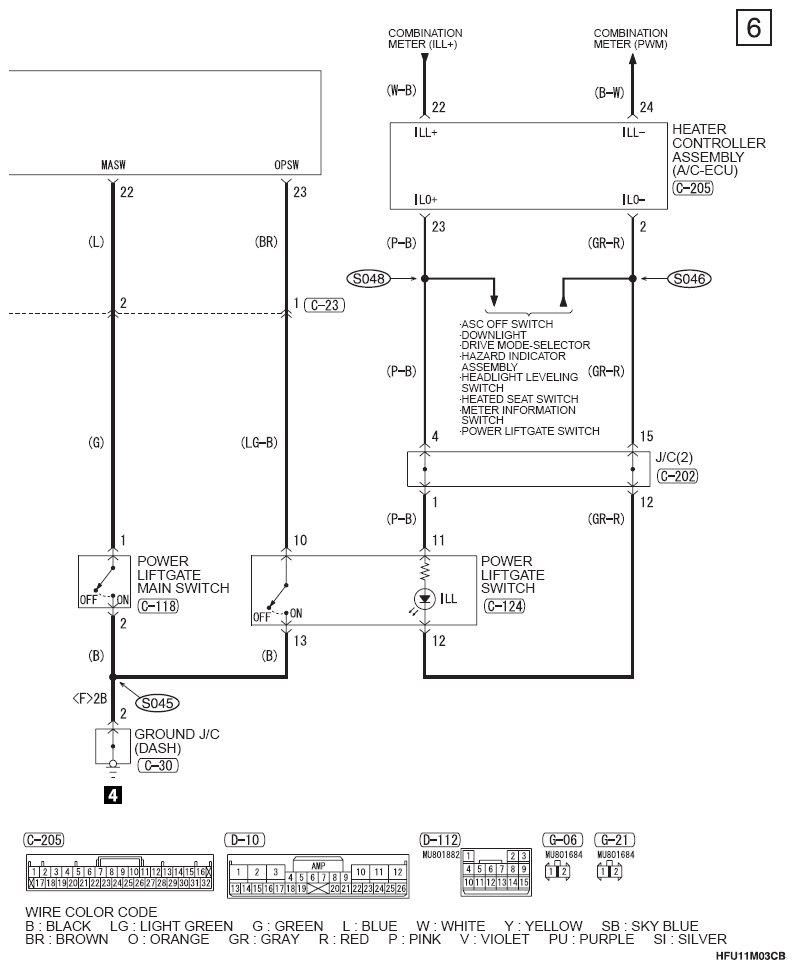

Fig 6: Power Liftgate - Circuit Diagram (6 Of 8)

G09621668

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

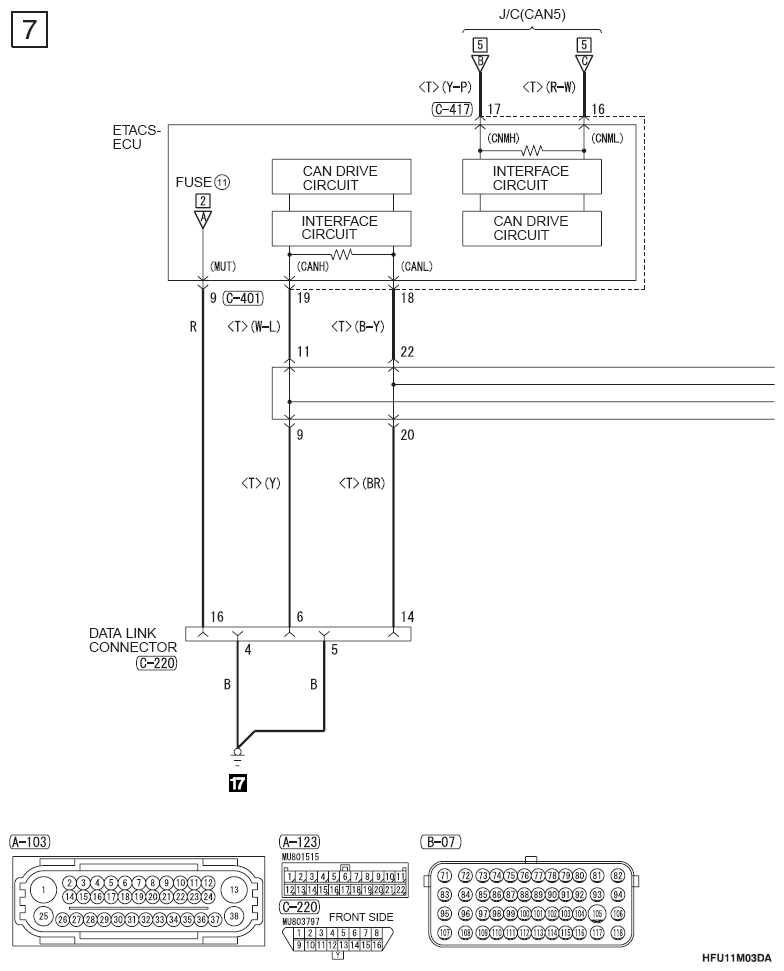

Fig 7: Power Liftgate - Circuit Diagram (7 Of 8)

G09621669

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

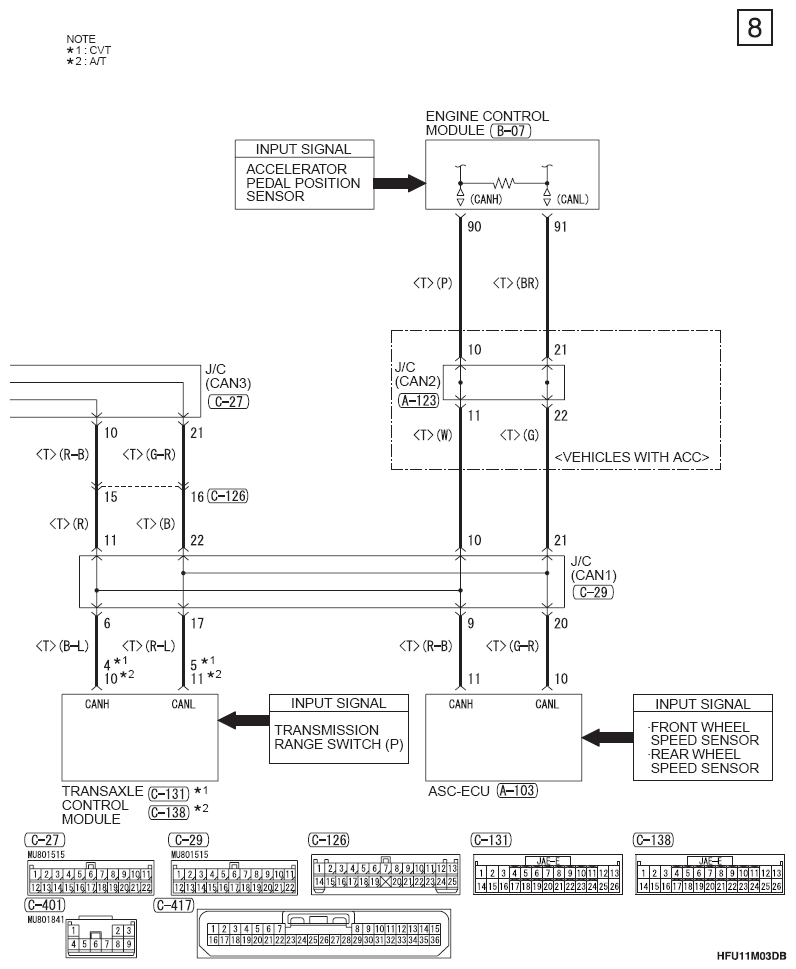

Fig 8: Power Liftgate - Circuit Diagram (8 Of 8)

G09621670

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
