Headlight Manual Leveling System

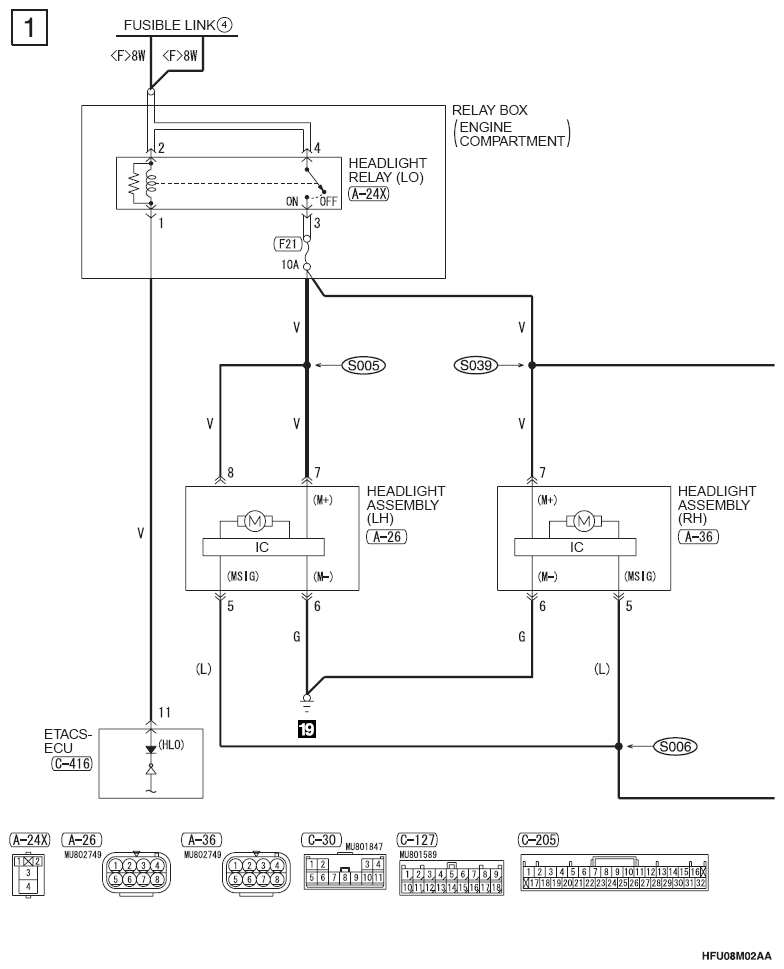

Fig 1: Headlight Manual Leveling System - Circuit Diagram (1 Of 2)
G09621597Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

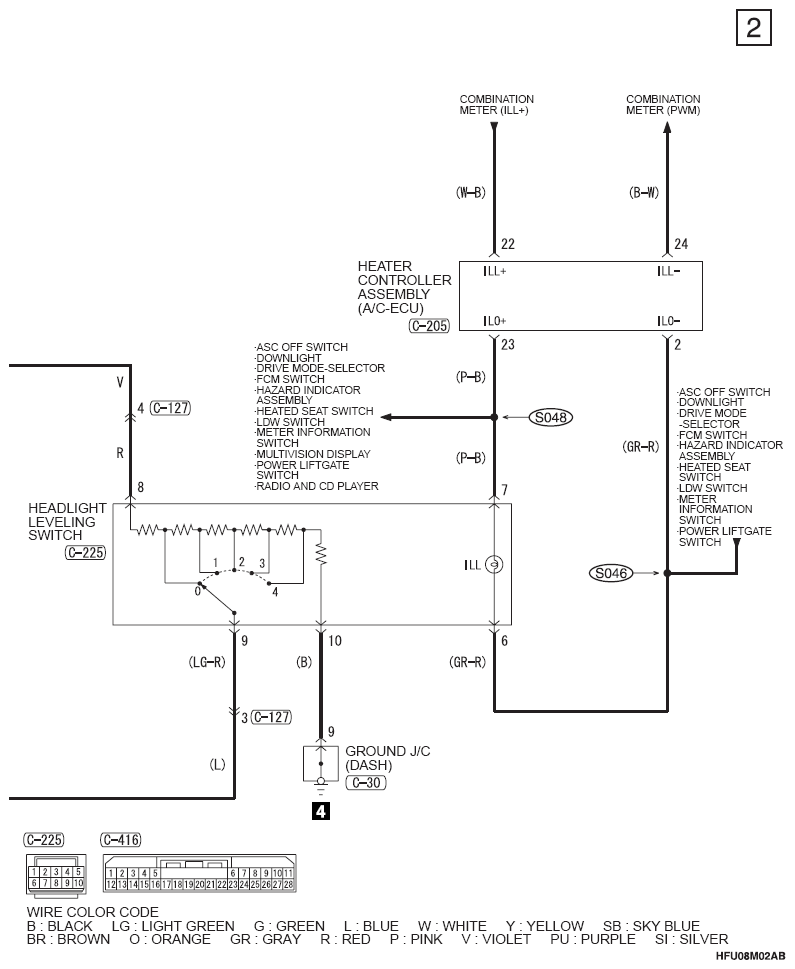

Fig 2: Headlight Manual Leveling System - Circuit Diagram (2 Of 2)
G09621598Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
