Back-Up Light

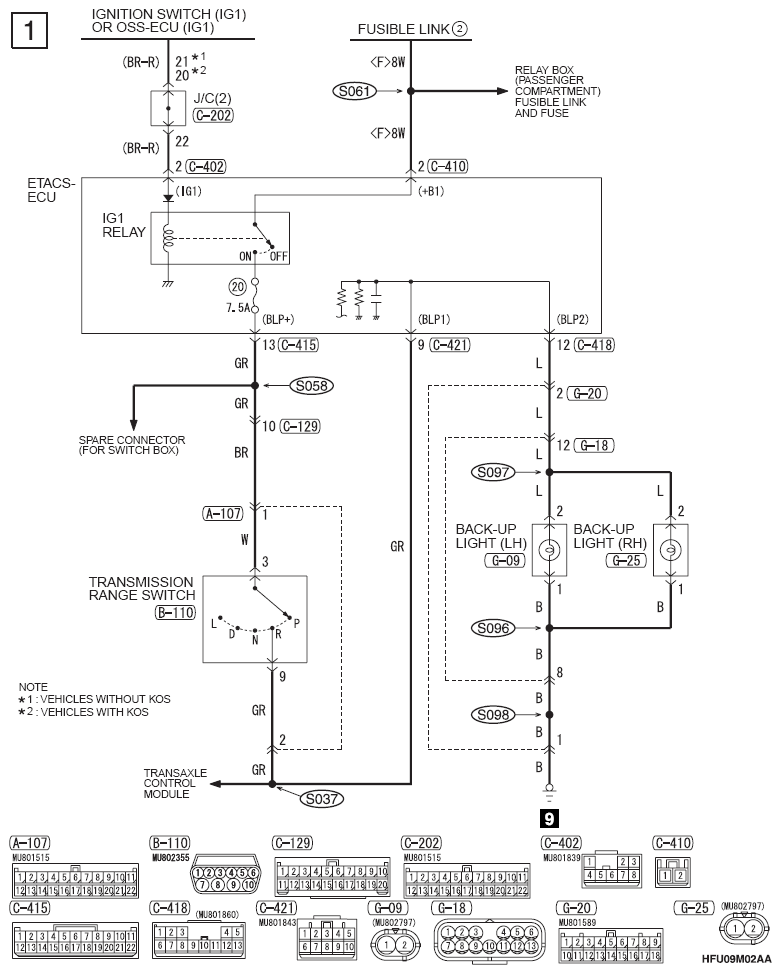

Fig 1: Back-Up Light - Circuit Diagram

G09621623

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
