Audio System

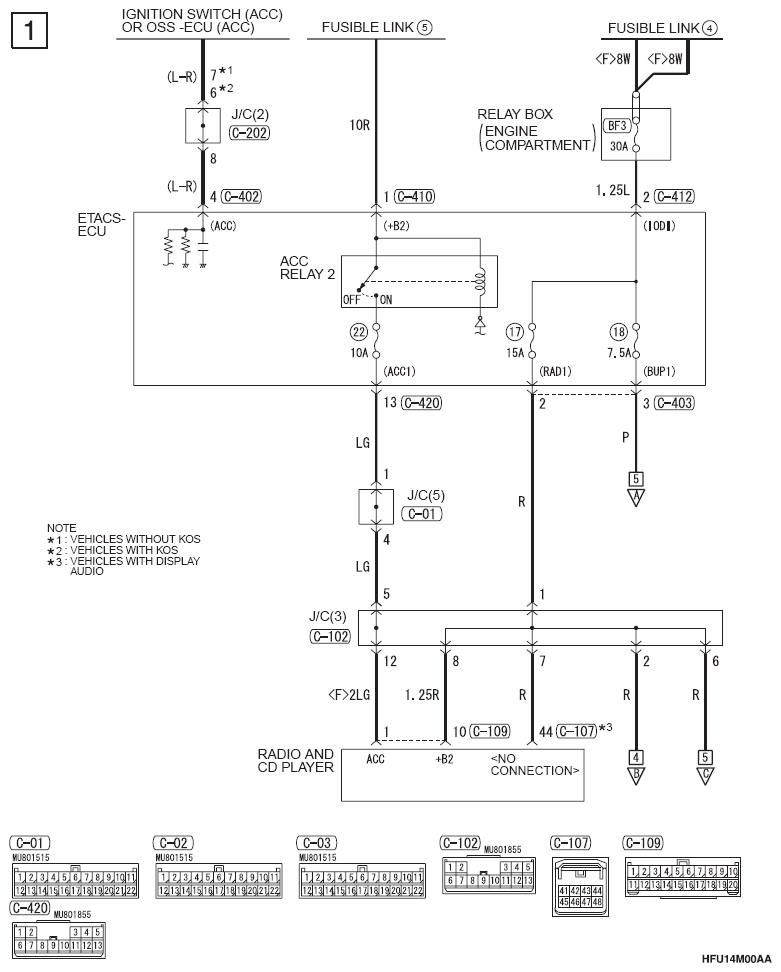

Fig 1: Audio System - Circuit Diagram (1 Of 12)

G09621697

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

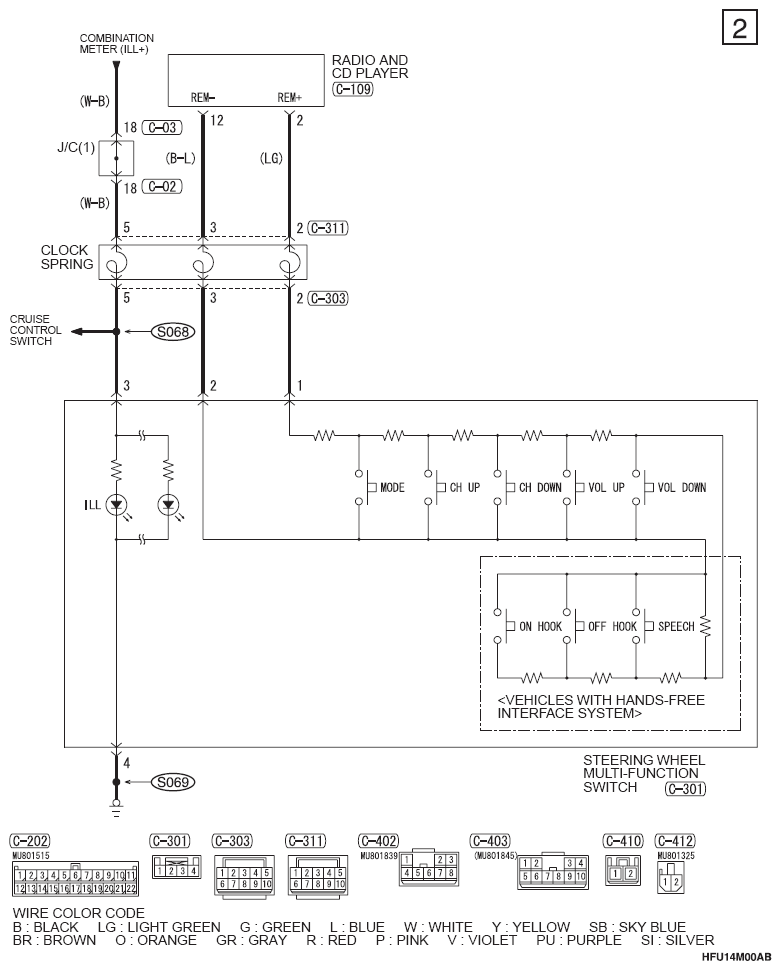

Fig 2: Audio System - Circuit Diagram (2 Of 12)

G09621698

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

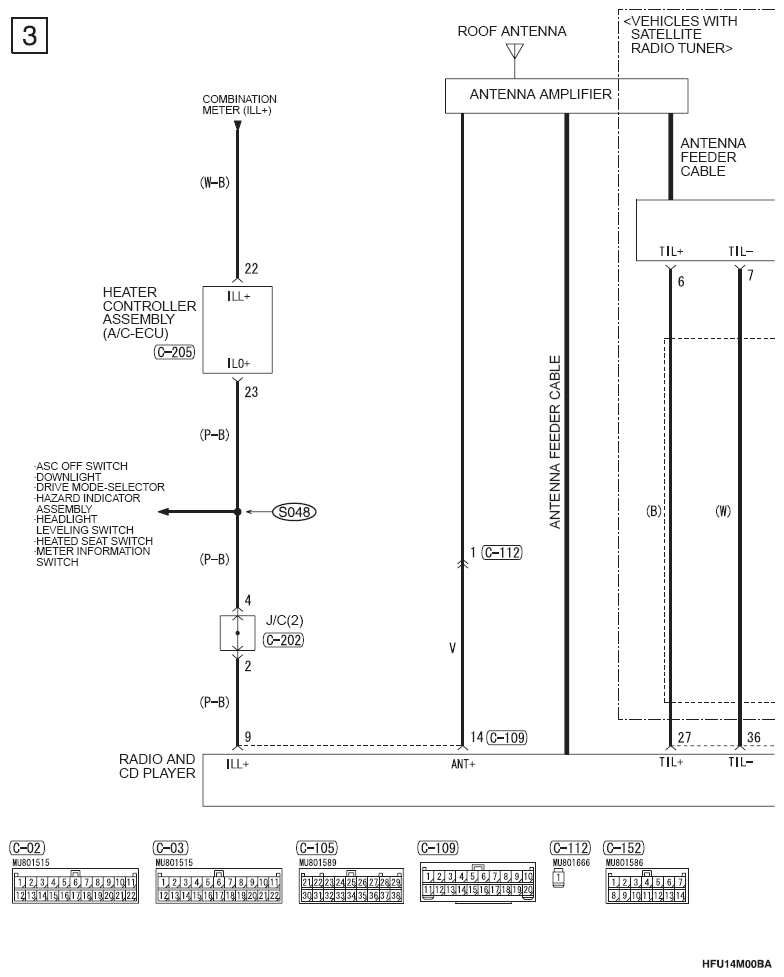

Fig 3: Audio System - Circuit Diagram (3 Of 12)

G09621699

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

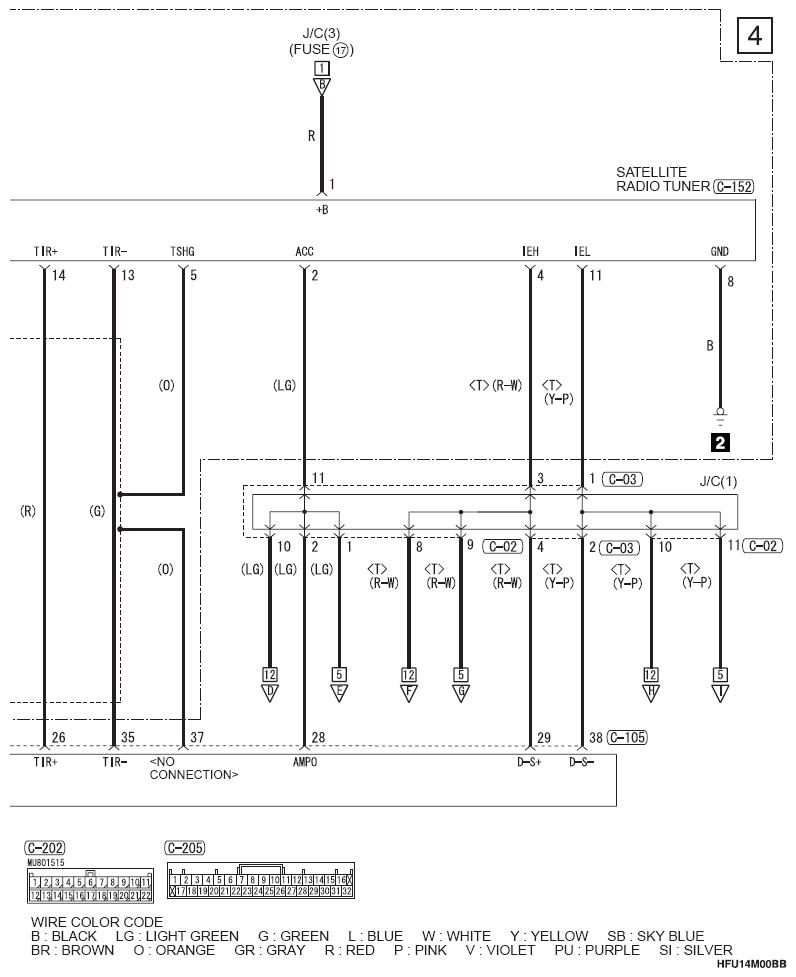

Fig 4: Audio System - Circuit Diagram (4 Of 12)

G09621700

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

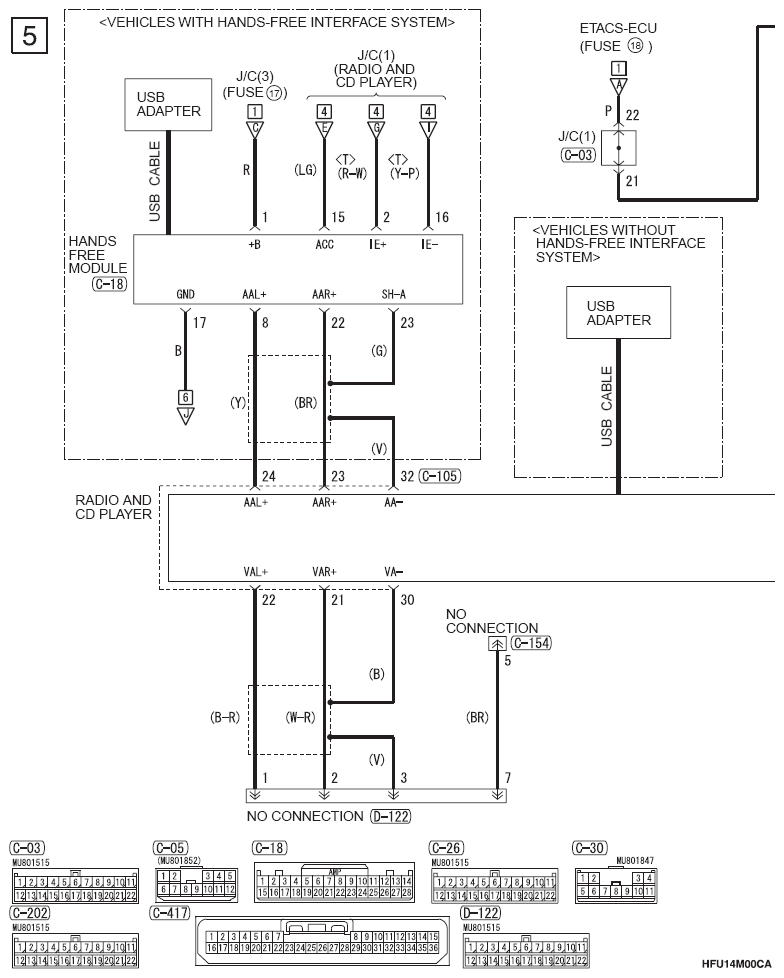

Fig 5: Audio System - Circuit Diagram (5 Of 12)

G09621701

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

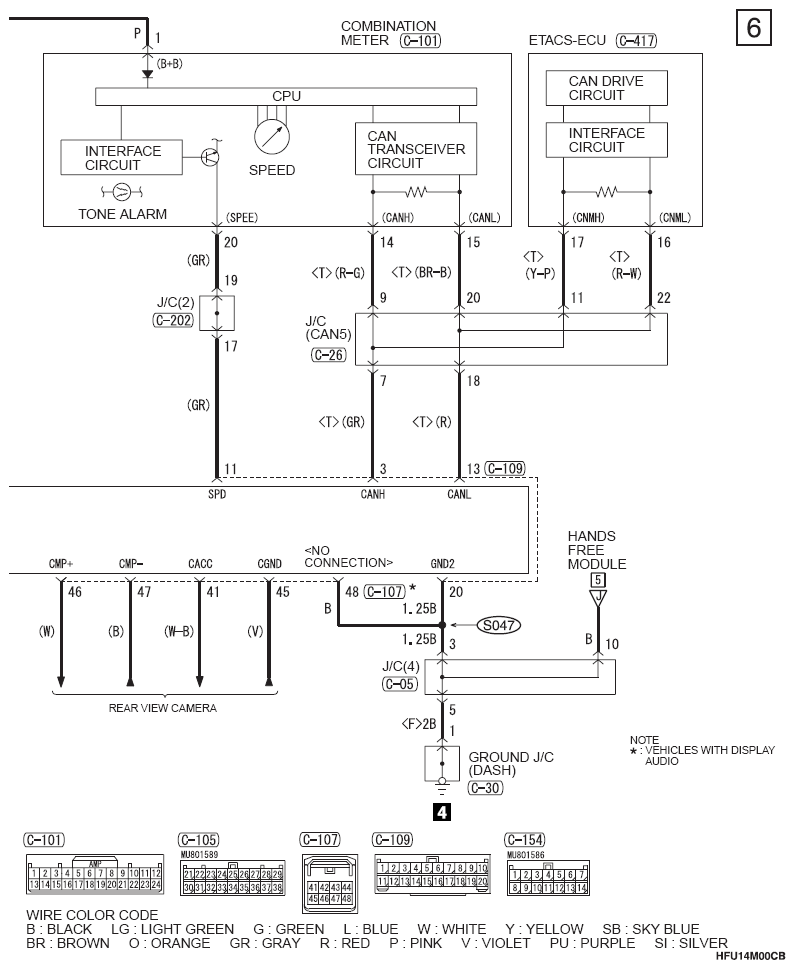

Fig 6: Audio System - Circuit Diagram (6 Of 12)

G09621702

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

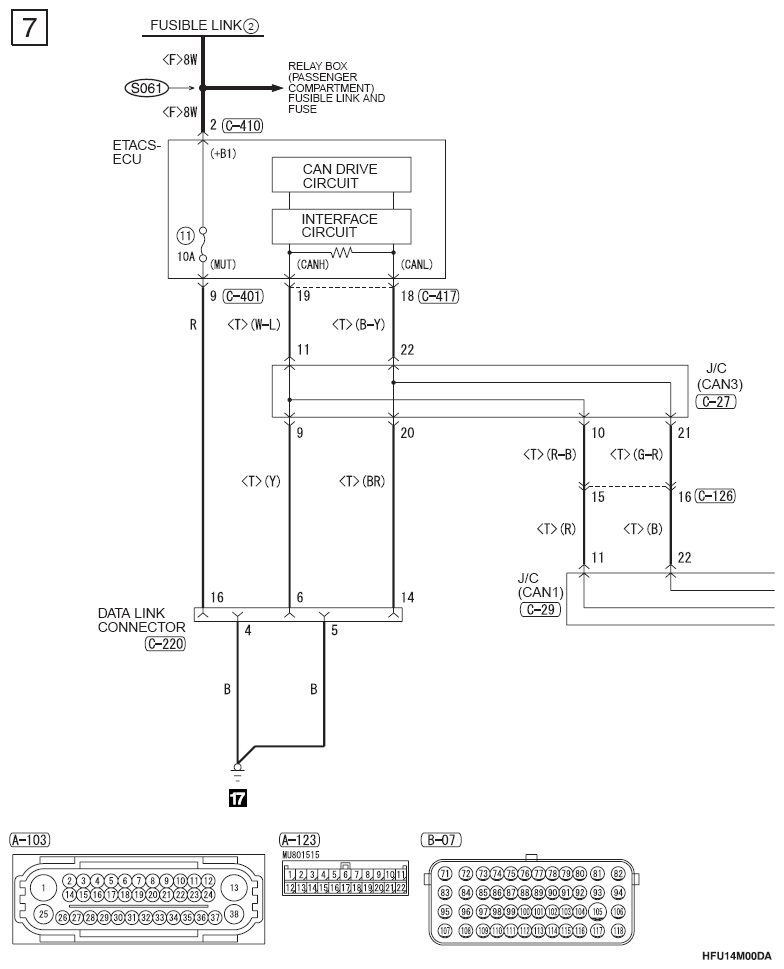

Fig 7: Audio System - Circuit Diagram (7 Of 12)

G09621703

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

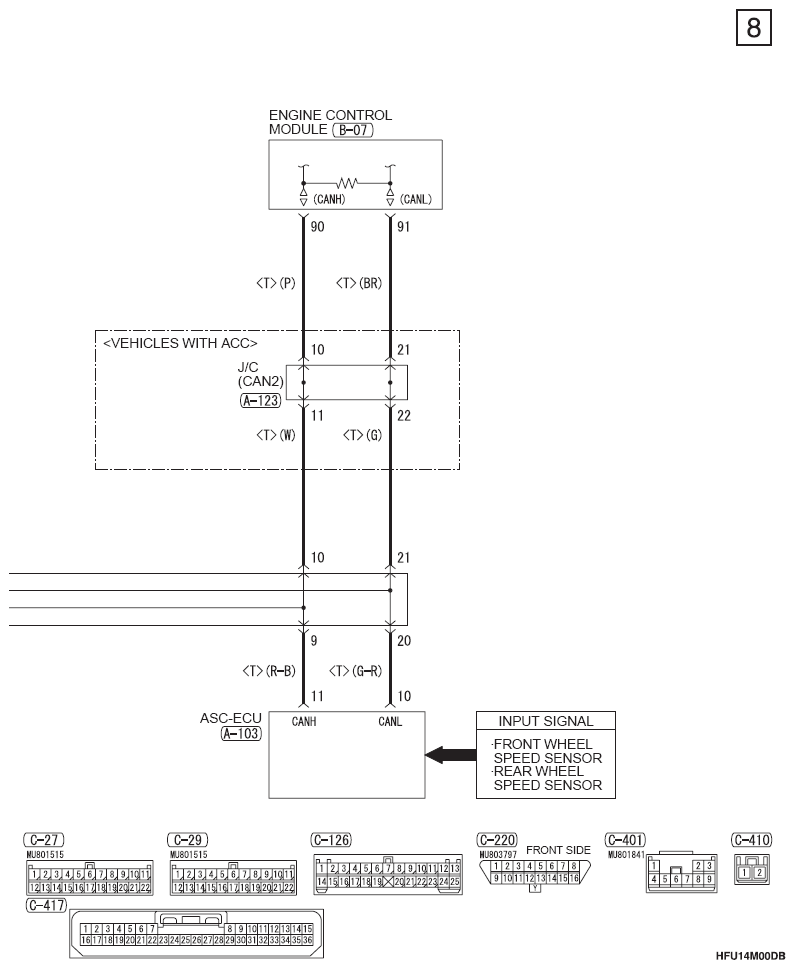

Fig 8: Audio System - Circuit Diagram (8 Of 12)

G09621704

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

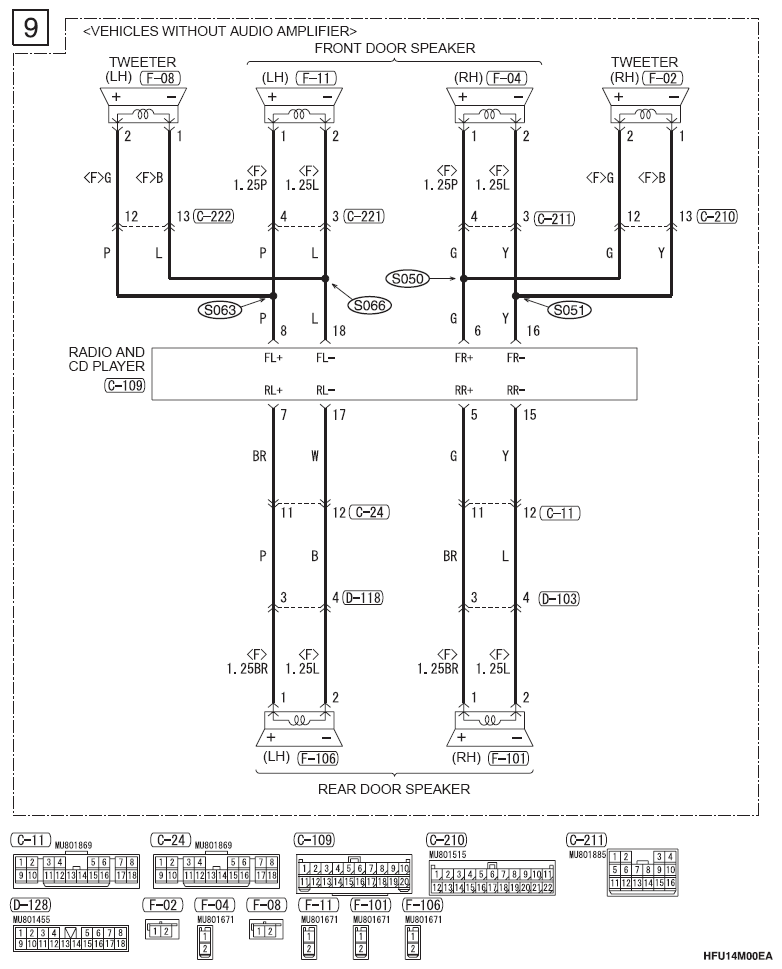

Fig 9: Audio System - Circuit Diagram (9 Of 12)

G09621705

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

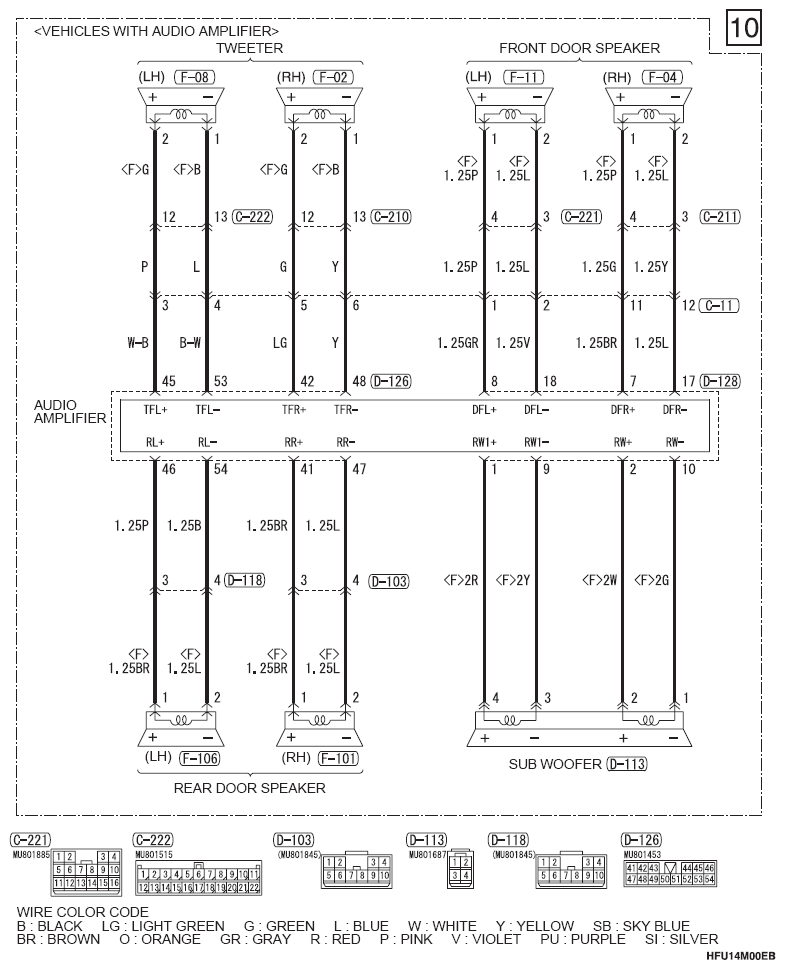

Fig 10: Audio System - Circuit Diagram (10 Of 12)

G09621706

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

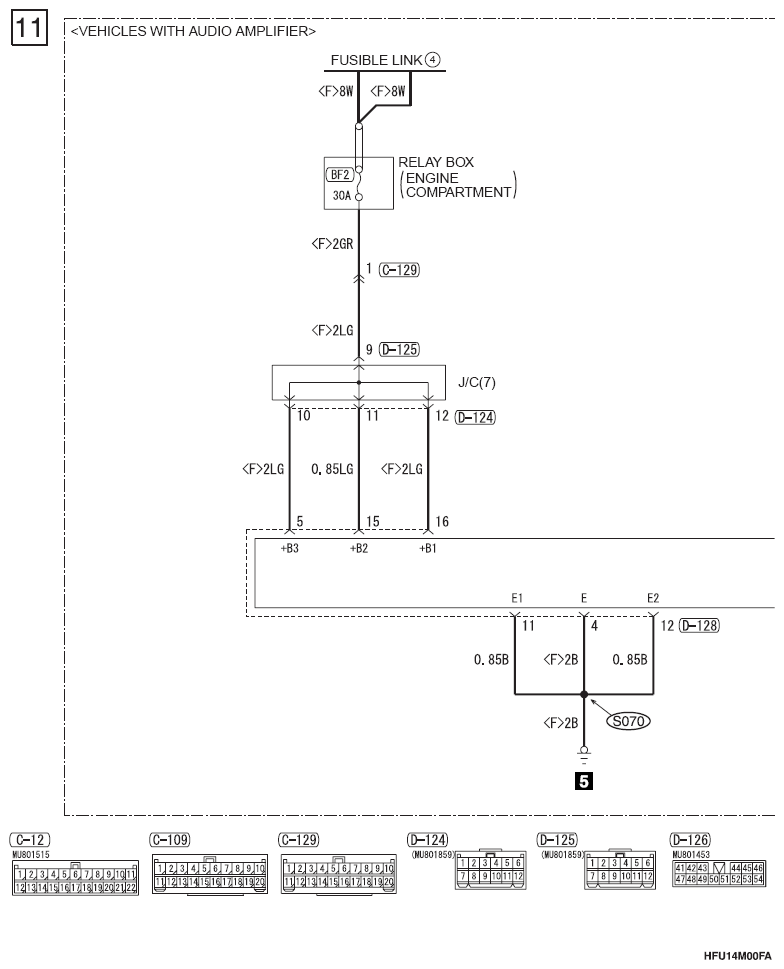

Fig 11: Audio System - Circuit Diagram (11 Of 12)

G09621707

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

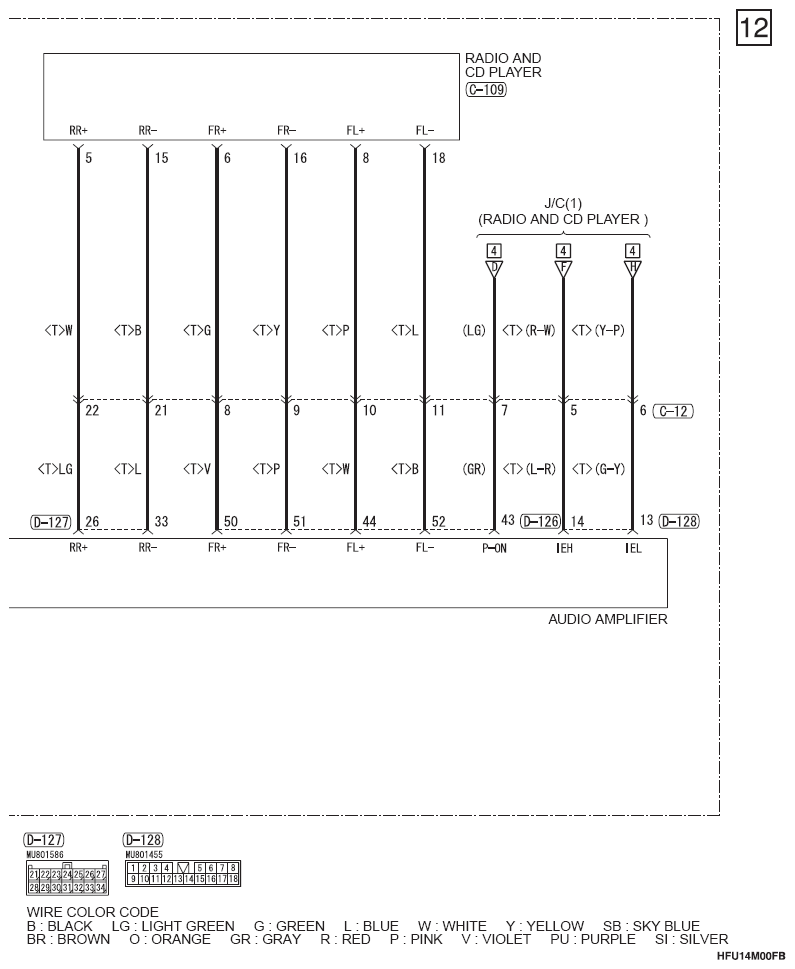

Fig 12: Audio System - Circuit Diagram (12 Of 12)

G09621708

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
