Removal And Installation: Notes

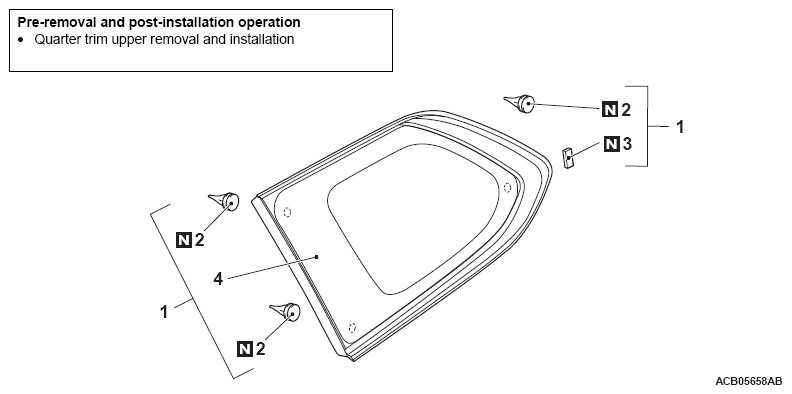

Fig 1: Removing/Installing Quarter Window Glass (1 Of 2)
G09666107Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

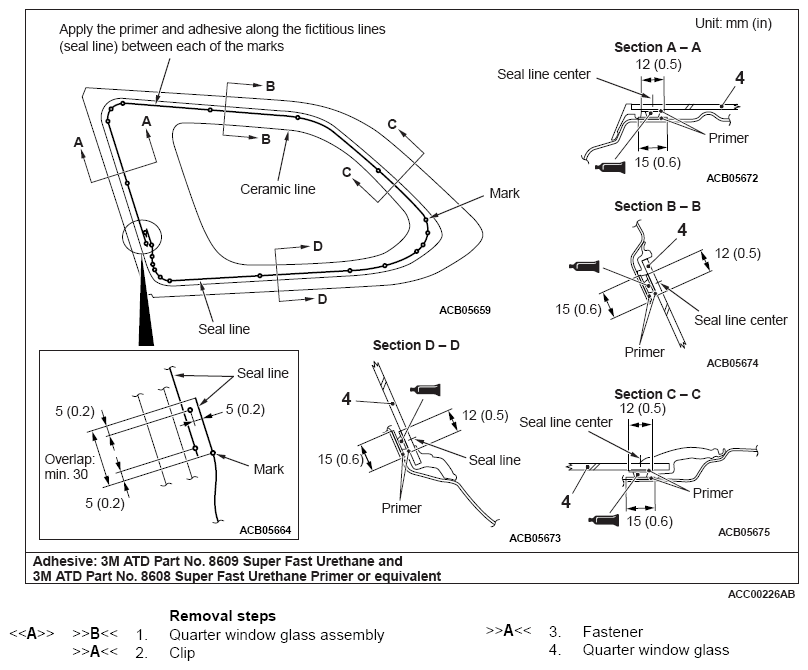

Fig 2: Removing/Installing Quarter Window Glass (2 Of 2)
G09666108Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
