Canister Removal And Installation: Notes

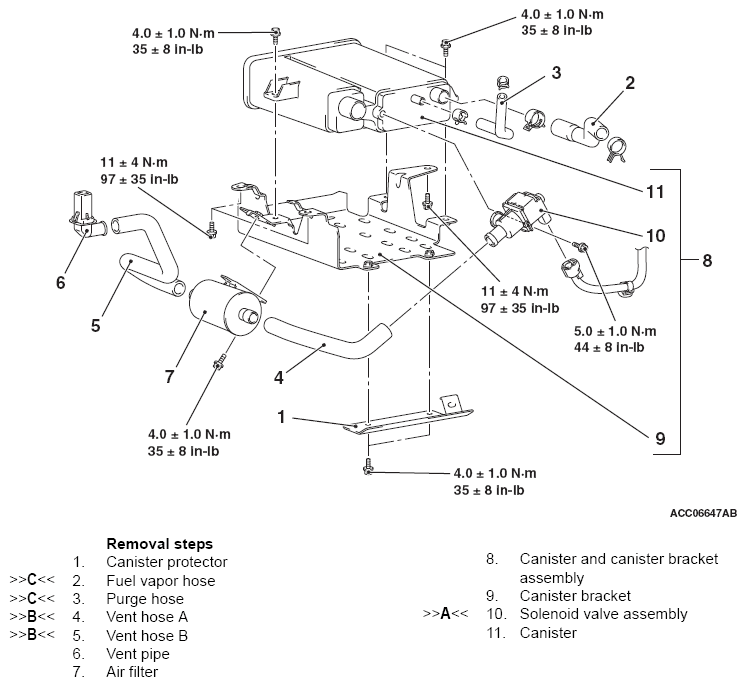

Fig 1: Removing/Installing Canister Components With Torque Specifications

G09628862

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
