Engine Compartment

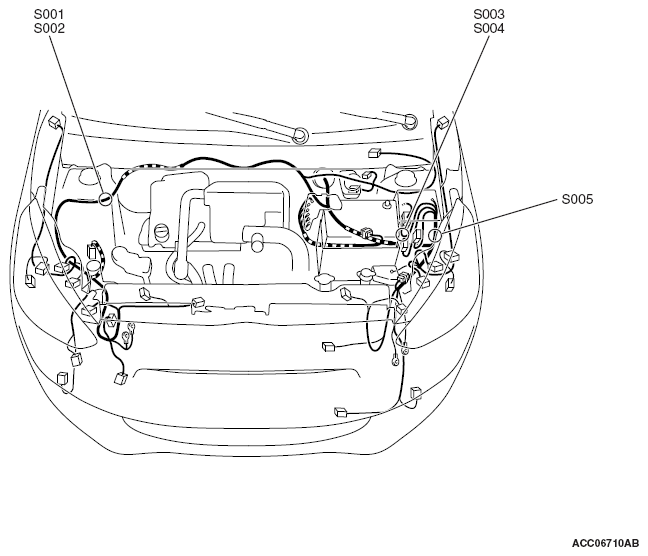

Fig 1: Engine Compartment Splice Locations

G09621092

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
