Home >> Mitsubishi >> 2014 >> Mirage DE, Standard Trans >> Repair and Diagnosis >> Restraints >> Passive Restraints >> Interior >> Seat Assembly >> Disassembly And Reassembly >> Notes

Disassembly And Reassembly: Notes

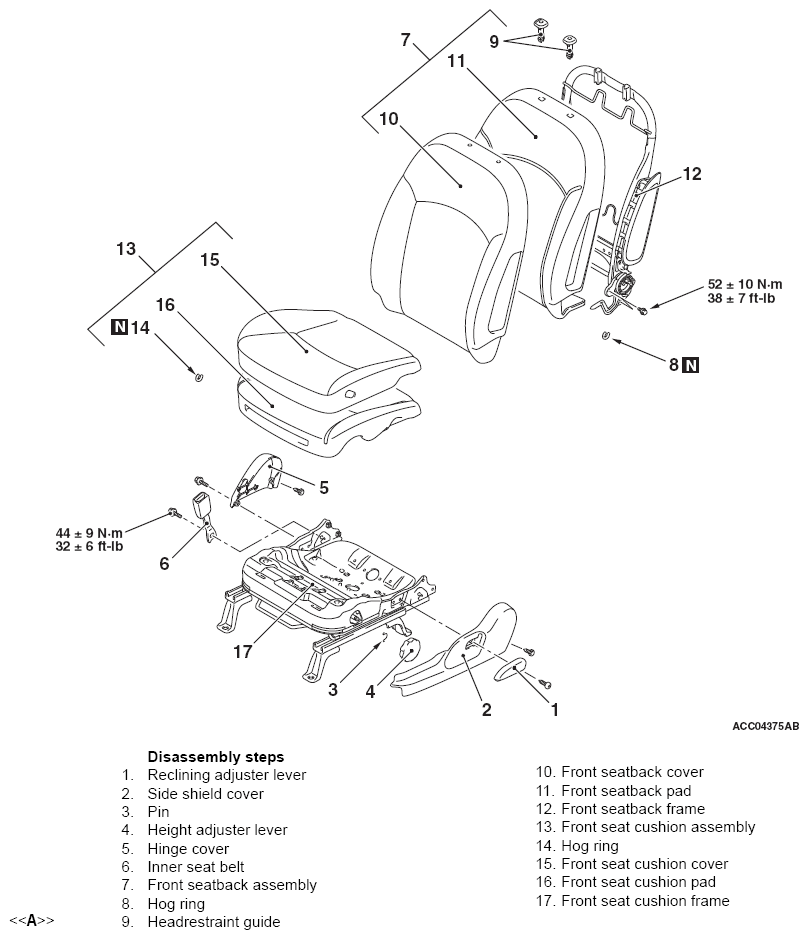

Fig 1: Disassembled View Of Seat Assembly With Torque Specifications

G09632527

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
