Home >> Mitsubishi >> 2014 >> Mirage DE, Standard Trans >> Repair and Diagnosis >> Body & Frame >> Windows >> Window Glass >> Liftgate Window Glass >> Removal And Installation >> Notes

Removal And Installation: Notes

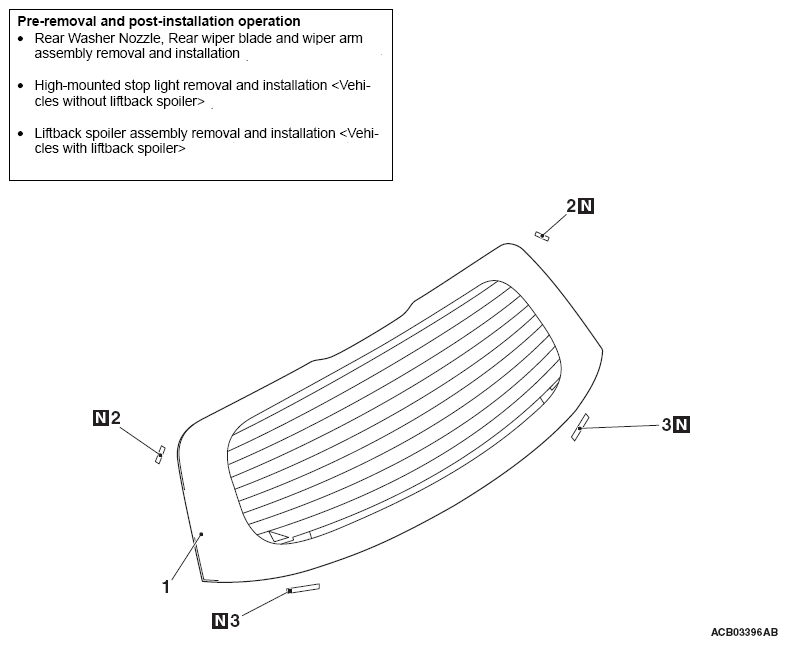

Fig 1: Removing/Installing Liftgate Window Glass And Mounting Bolts With Specifications (1 Of 2)
G09631885Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

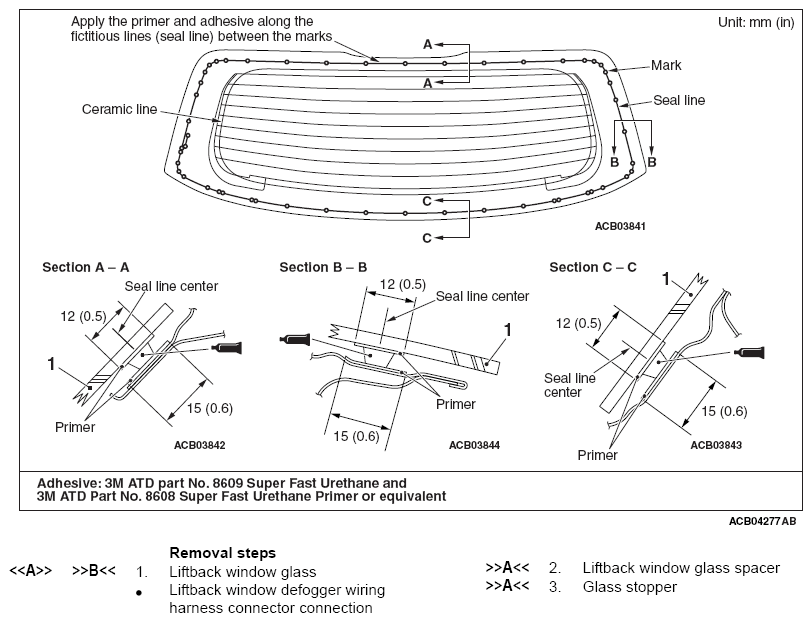

Fig 2: Removing/Installing Liftgate Window Glass And Mounting Bolts With Specifications (2 Of 2)
G09631886Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
