Removal And Installation

CAUTION:
  • Do not damage the upper arm ball joint dust cover during maintenance. If it is damaged, replace the upper arm ball joint dust cover (UPPER ARM BALL JOINT ROTATION STARTING TORQUE CHECK  ).
  • The part indicated by *1 should be temporarily tightened, and then fully tightened with the vehicle standing on the ground and the curb weight condition.
  • The parts indicated by *2 are the bolts and nut with friction coefficient stabilizer. In removal, ensure there is no damage, clean dust and soiling from the bearing and thread surfaces, and tighten them to the specified torque.

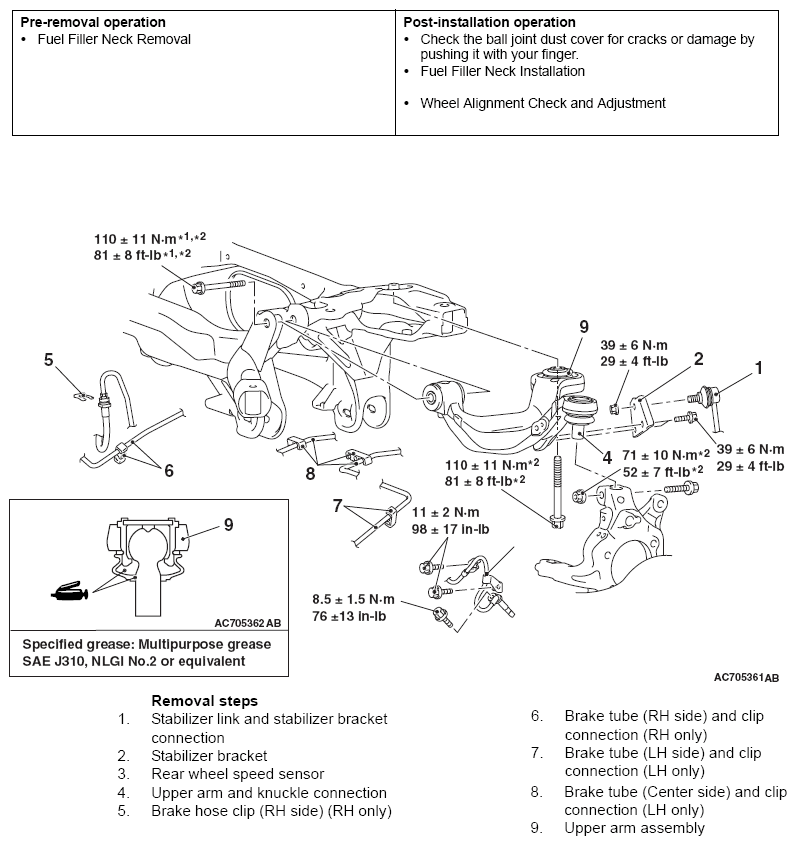

Fig 1: Removing/Installing Upper Arm Assembly With Torque Specifications
G09650735Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
