Speed Gears

WARNING: This page is about a different variant/trim than selected.
  1. Check that the helical and clutch gears of each speed gear are not damaged or worn in the tooth surface.
  2. Check that the synchronizer cone of each speed gear is not roughened, damaged or worn in the surface.
  3. Check that the inner, front and rear surfaces of each speed gear are not damaged or worn.

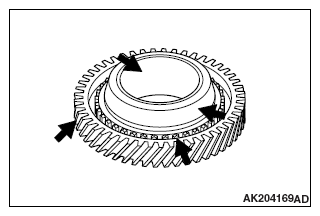

    Fig 1: Checking Inner, Front And Rear Surfaces Of Each Speed Gear For Damaged/Worn
    G09641266Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
