Schematic Diagram

WARNING: This page is about a different variant/trim than selected.

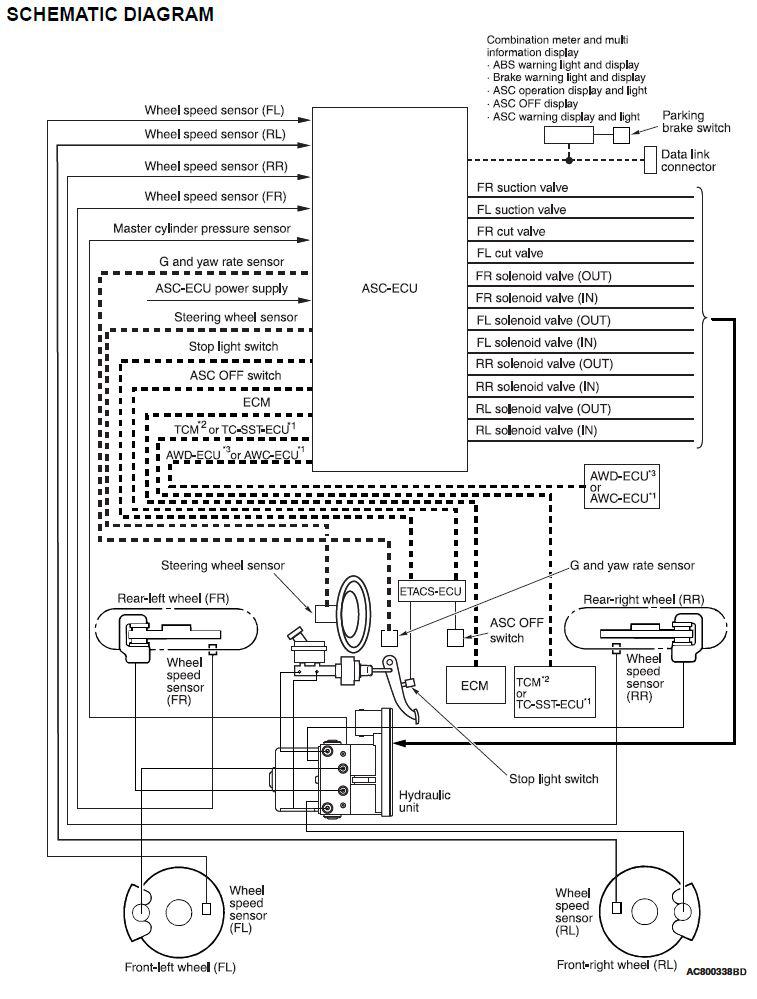

Fig 1: ASC System Schematic Diagram
G08293997Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
NOTE:
  • Dashed lines indicate the CAN bus line.
  • *1 : RALLIART
  • *2 : CVT
  • *3 : AWD (except RALLIART)
