Lancer Evolution MR
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
Circuit Diagrams - Lancer Evolution
>>
Cooling System
Cooling System

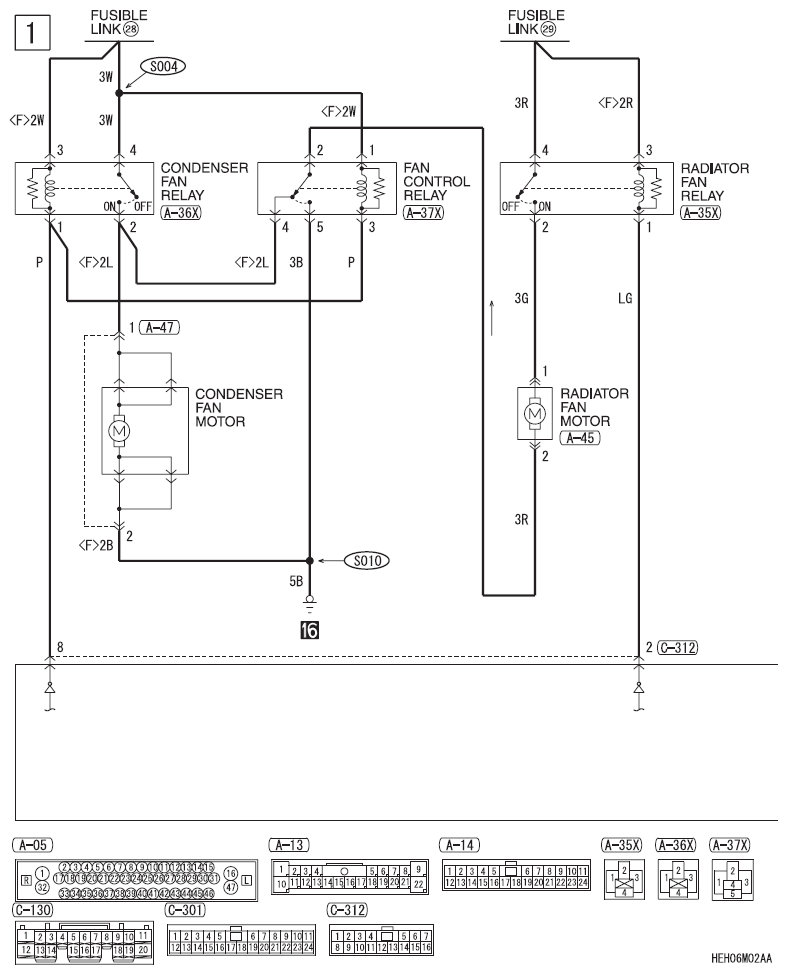

Fig 1: Cooling System - Circuit Diagram (1 Of 4)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

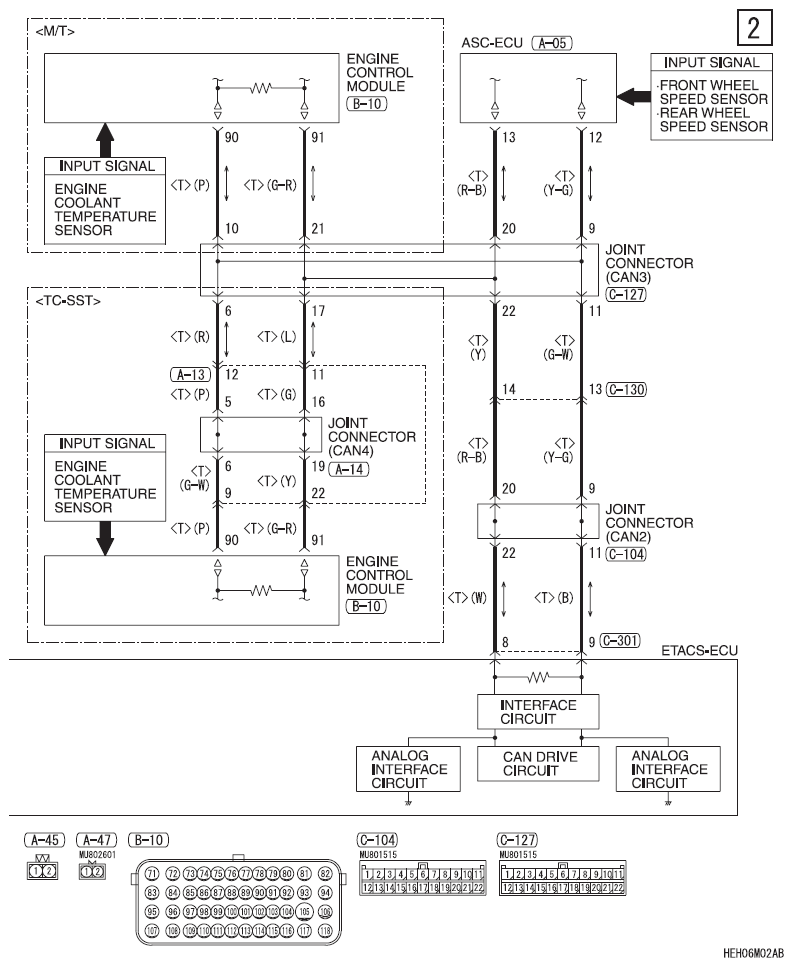

Fig 2: Cooling System - Circuit Diagram (2 Of 4)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

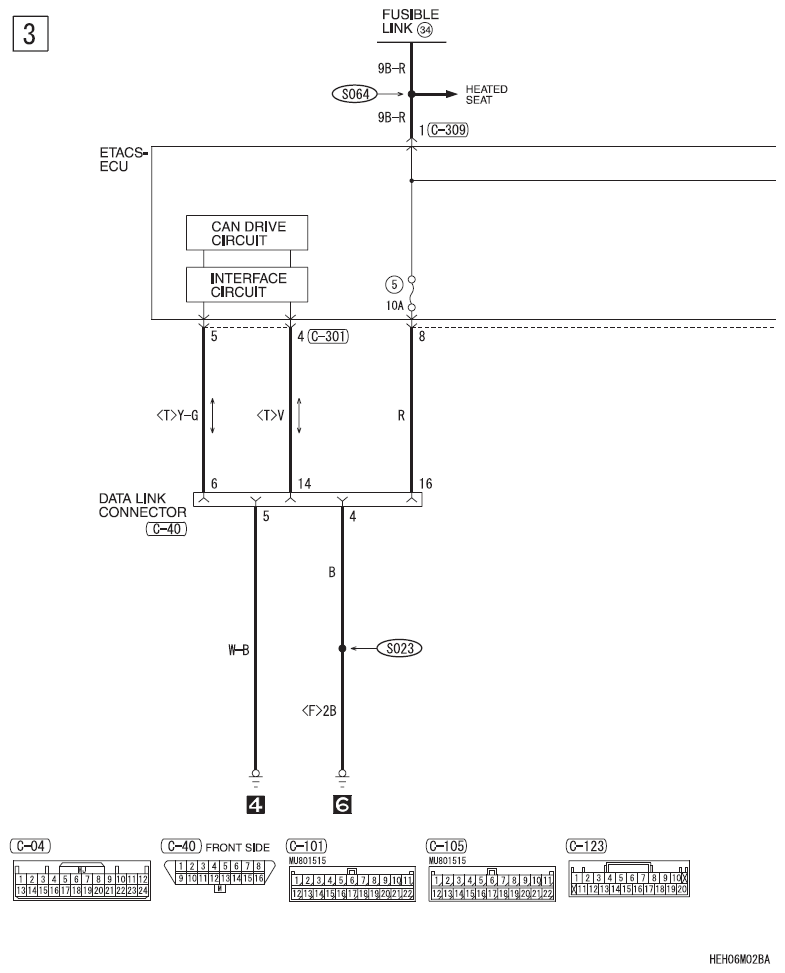

Fig 3: Cooling System - Circuit Diagram (3 Of 4)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

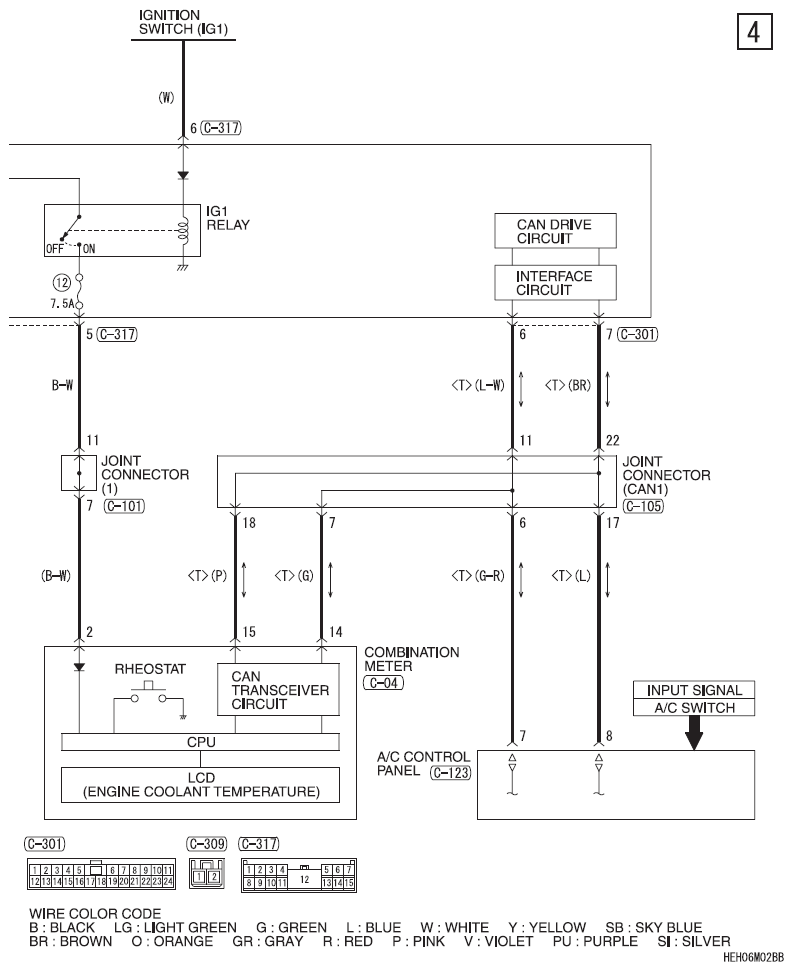

Fig 4: Cooling System - Circuit Diagram (4 Of 4)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
