Mitsubishi
>>
2014
>>
Lancer Evolution MR
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
Circuit Diagrams - Lancer Evolution
>>
Backup Light
Backup Light

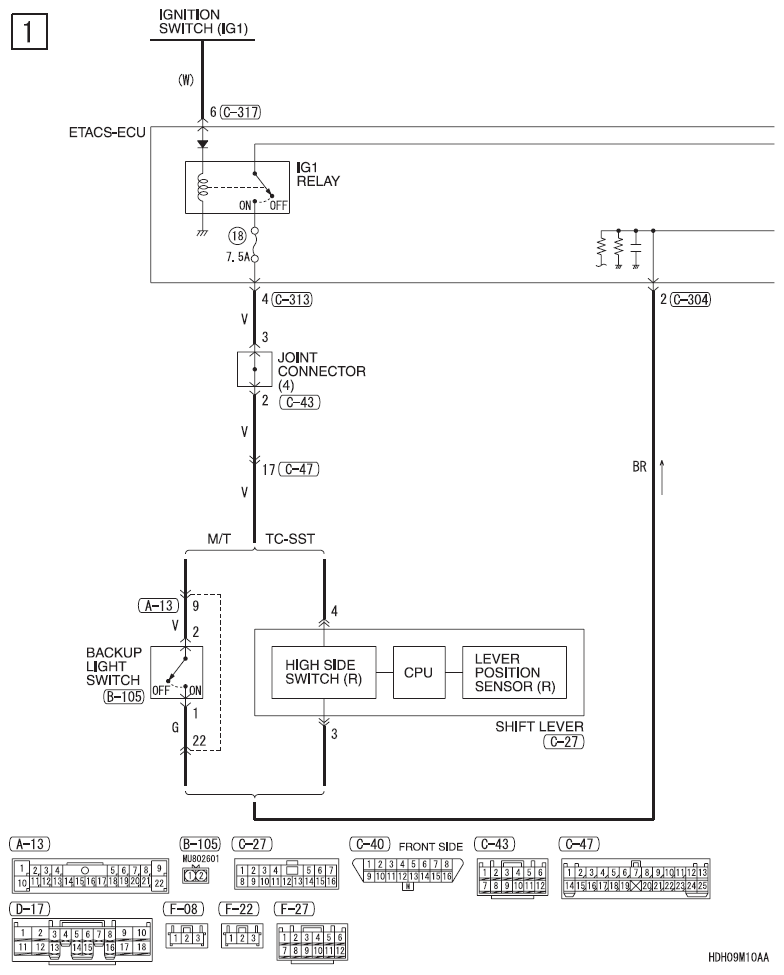

Fig 1: Backup Light - Circuit Diagram (1 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

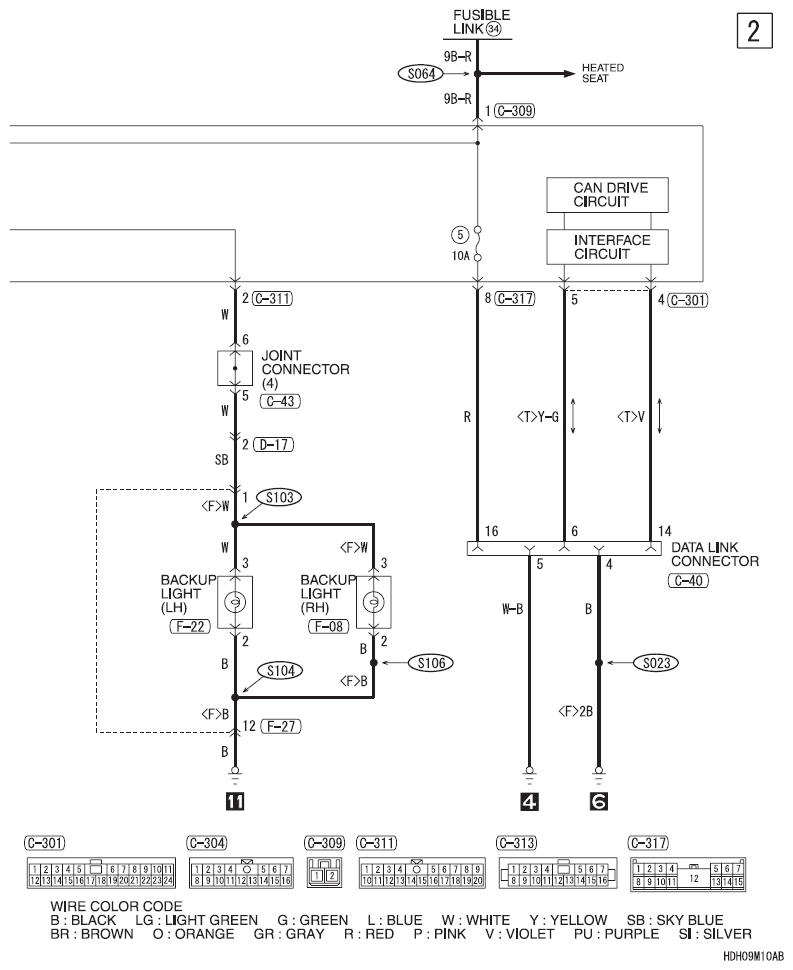

Fig 2: Backup Light - Circuit Diagram (2 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
