Circuit Diagrams - Lancer Evolution
>>
Accessory Socket
Accessory Socket

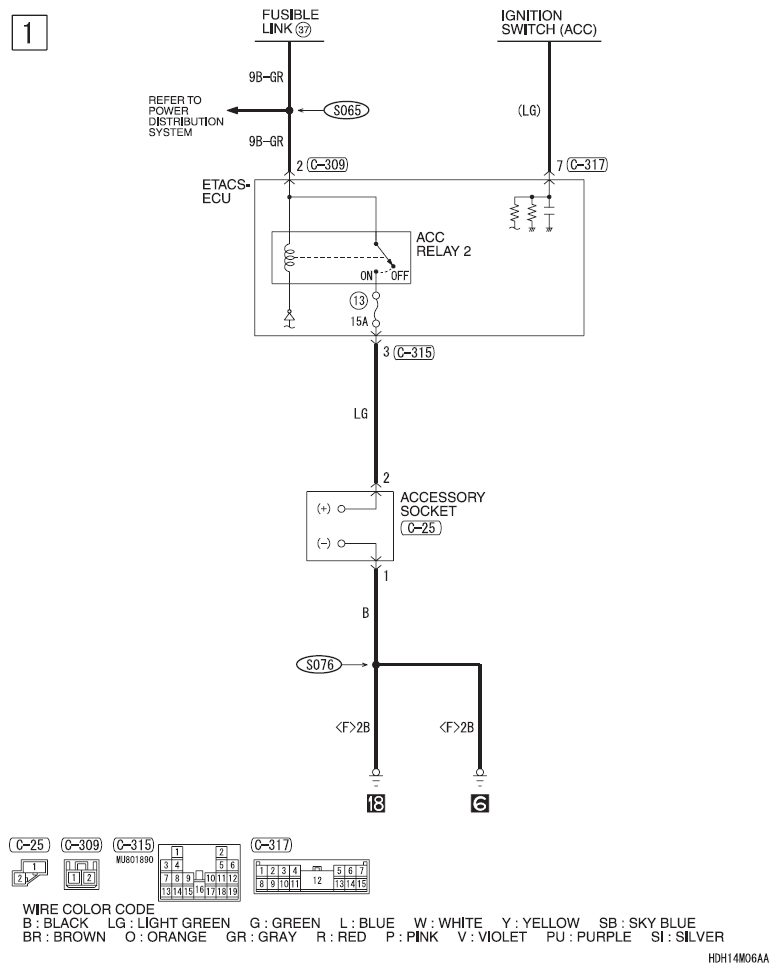

Fig 1: Accessory Socket - Circuit Diagram
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
