Theft-Alarm Indicator Check

  1. Remove the center panel.
  2. Connect the battery (+) terminal with the center panel connector (terminal No. 15). Then, check if the theft-alarm indicator is illuminated when the battery (-) terminal and the center panel connector (terminal No. 12) are connected.
  3. If the theft-alarm indicator is illuminated, it is judged good.
    NOTE: Make sure that the polarity is correct.

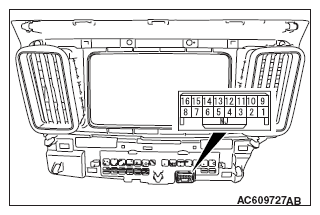

    Fig 1: Theft-Alarm Indicator Connector End View
    G09653055Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
