Special Tools

Tool Tool number and name Supersession Application

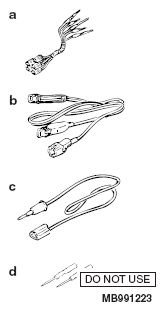

G09652928
 MB991223
  1. MB991219
  2. MB991220
  3. MB991221
  4. MB991222

Harness set
  1. Check harness
  2. LED harness
  3. LED harness adapter
  4. Probe
 General service tool (jumper) Continuity check and voltage measurement at harness wire or connector
  1. For checking connector pin contact pressure
  2. For checking power supply circuit
  3. For checking power supply circuit
  4. For connecting a locally sourced tester
G09652929
 MB992006
Extra fine probe		 - Continuity check and voltage measurement at harness wire or connector
