Inspection Procedure 2: The keyless operation key cannot be registered using scan tool: Notes

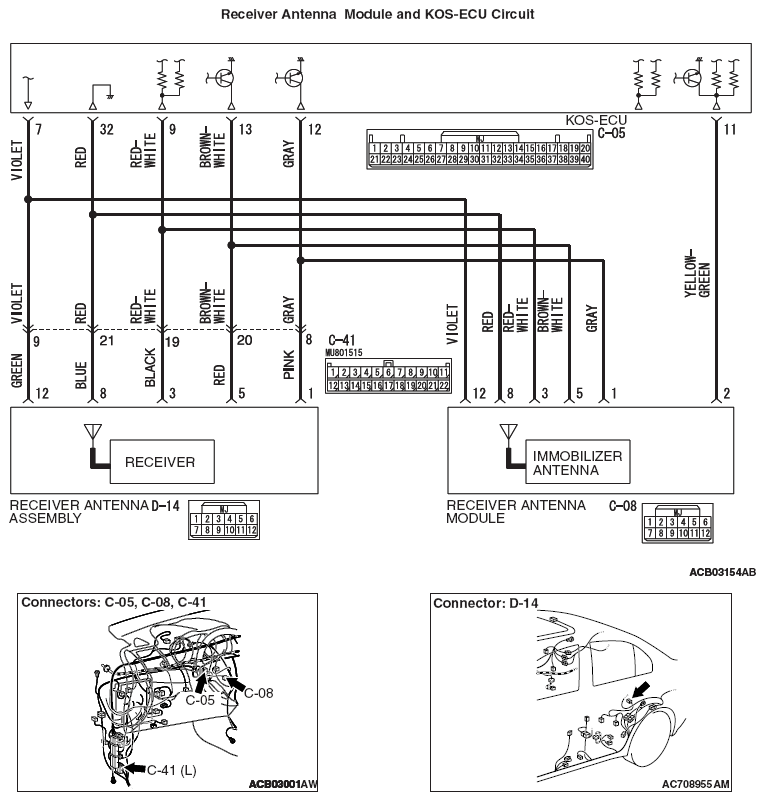

Fig 1: Receiver Antenna Module And KOS-ECU Circuit Diagram

G09651370

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
