Removal And Installation: Notes

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Do not apply lubricant (grease or silicon system sprayer etc.) to the switch and the switch installation section to avoid malfunction of the switch. In addition, do not use gloves which have lubricant (grease or silicon system sprayer etc.) on them.

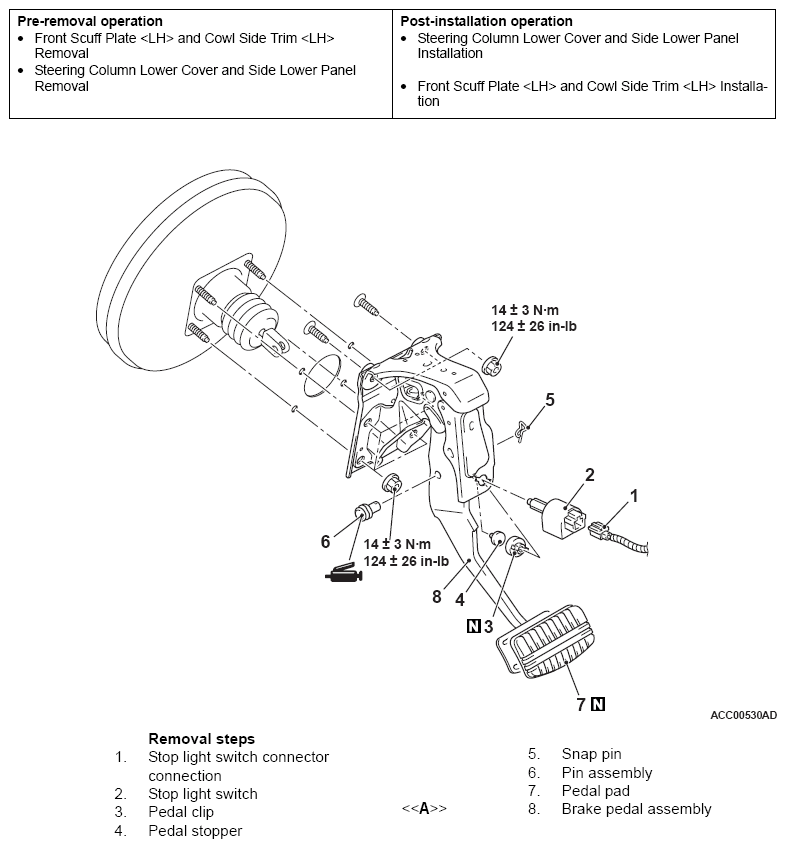

Fig 1: Removing/Installing Brake Pedal With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
