Inspection Procedure 2: Accelerator Pedal Operation Not Smooth (Over Acceleration): Diagnosis

Required Special Tools:

• MB991958: Scan Tool (M.U.T.-III Sub Assembly)
  • MB991824: V.C.I.
  • MB991827: M.U.T.-III USB Cable
  • MB991910: M.U.T.-III Main Harness A

1. STEP 1. Check if the accelerator pedal is installed correctly.

   Q: Is the accelerator pedal installed correctly?

   1. YES:  Go to Step 2.
   2. NO:  Remove and reinstall the accelerator pedal (Refer to REMOVAL AND INSTALLATION  ). Then go to  STEP 3.
2. STEP 2. Using scan tool MB991958, read the MFI system DTC.
   CAUTION: To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958.
   1. Ensure that the ignition switch is at the "LOCK" (OFF) position.
   2. Start up the personal computer.
   3. Connect special tool MB991827 to special tool MB991824 and the personal computer.
   4. Connect special tool MB991910 to special tool MB991824.
   5. Connect special tool MB991910 to the data link connector.
   6. Turn the power switch of special tool MB991824 to the "ON" position.
      NOTE: When special tool MB991824 is energized, special tool MB991824 indicator light will be illuminated in a green color.
   7. Start the M.U.T.-III system on the personal computer.
   8. Turn the ignition switch to the "ON" position.
   9. Check for MFI system DTC. (Refer to HOW TO READ AND ERASE DIAGNOSTIC TROUBLE CODES ).
   10. Turn the ignition switch to the "LOCK" (OFF) position, and then remove scan tool MB991958 in the reverse order of installation.

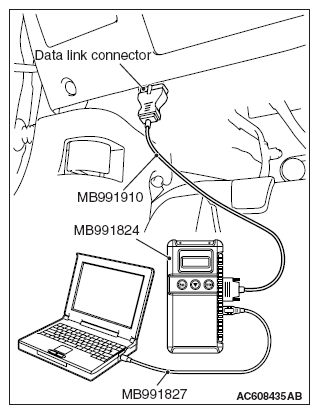

       Fig 1: Identifying Data Link Connector And Special Tools

       Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

   Q: Is any DTC set?

   1. YES:  Repair MFI system (Refer to DIAGNOSTIC TROUBLE CODE TABLE ). Then go to Step 3.
   2. NO:  Go to Step 3.
3. STEP 3. Retest the system.

   Q: Does the accelerator pedal work normally?

   1. YES:  The procedure is complete.
   2. NO:  Return to  STEP 1.
