Removal And Installation: Notes

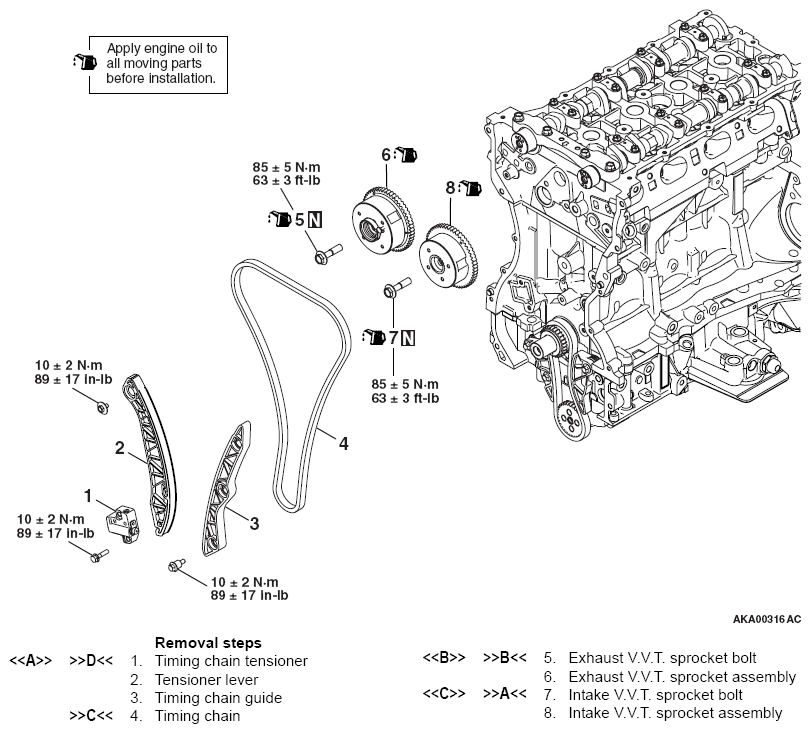

Fig 1: Removing/Installing Timing Chain Components With Torque Specifications

G09639853

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
