Wiring Harness Routing - Lancer Evolution: Door

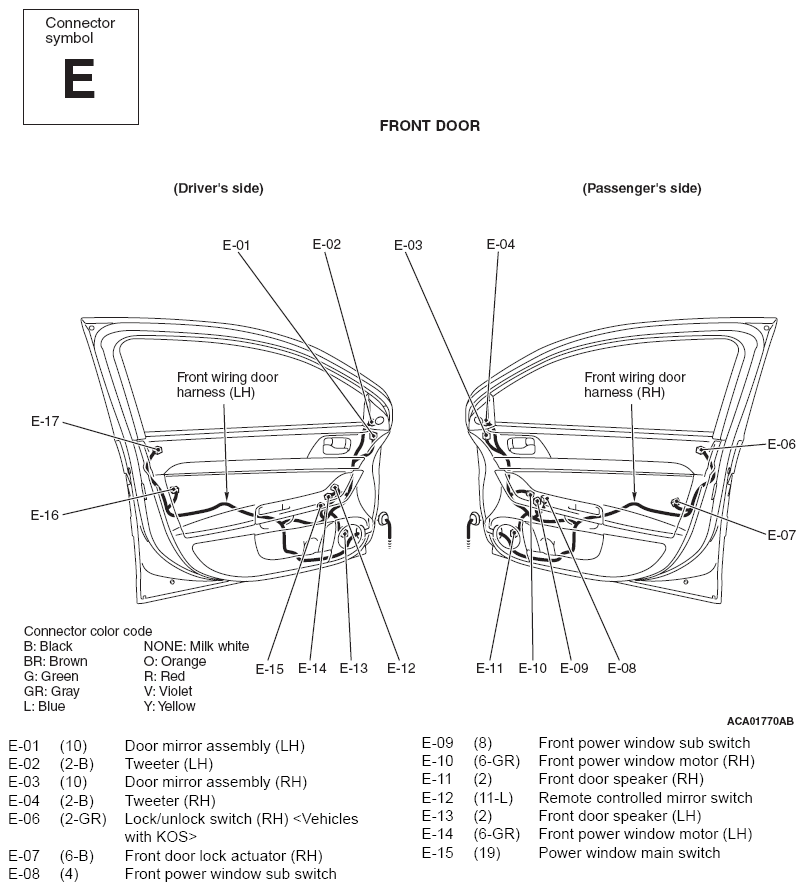

Fig 1: Front Door Connectors Location
G09620645Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

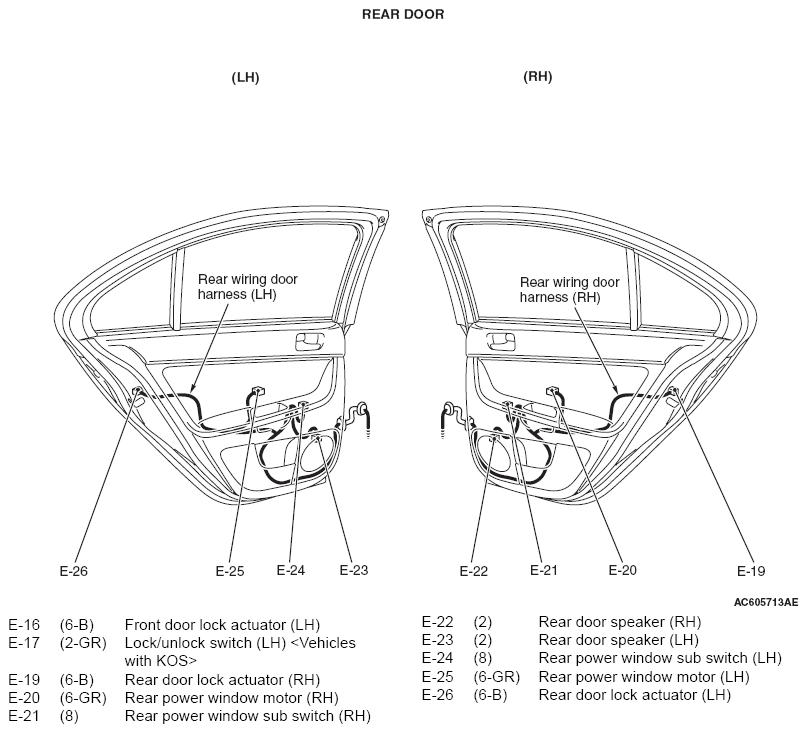

Fig 2: Rear Door Connectors Location
G09620646Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
