Section 45 (Basic Brake System)
>>
Rear Disc Brake Assembly
>>
Disassembly And Assembly
>>
Lubrication Points
Lubrication Points
WARNING:
This page is about a different car, the 2012 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

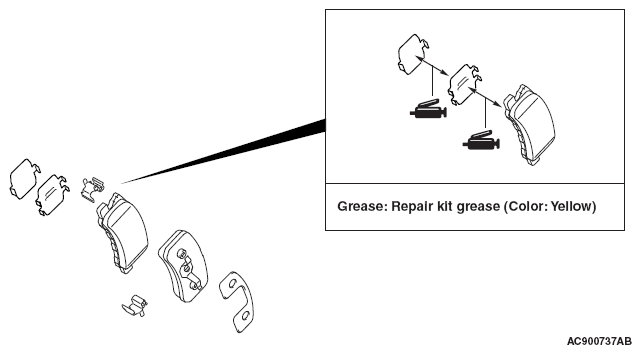

Fig 1: Identifying Rear Disc Brake Assembly Lubrication Points (1 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

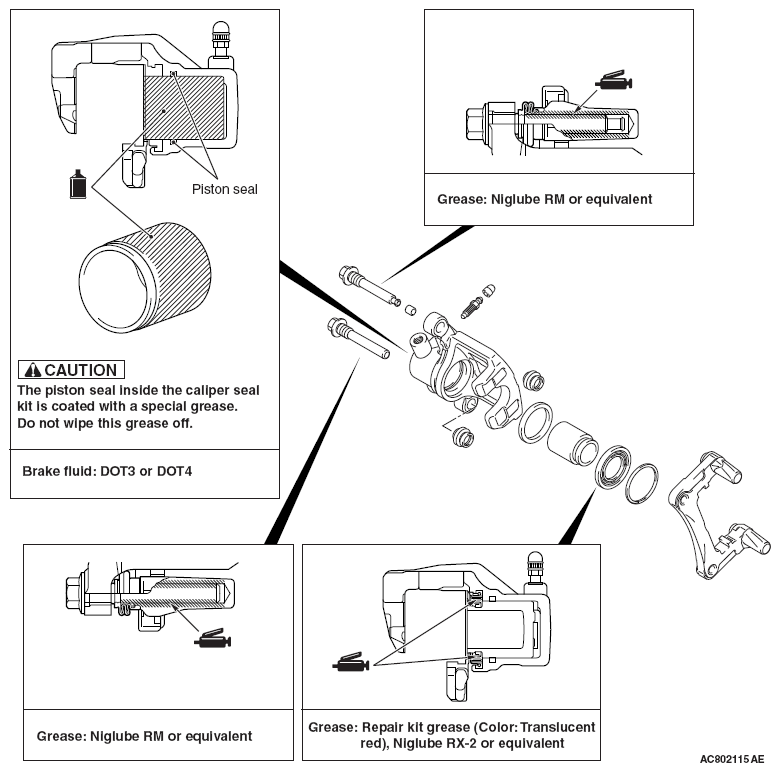

Fig 2: Identifying Rear Disc Brake Assembly Lubrication Points (2 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
