Home >> Mitsubishi >> 2013 >> Outlander Sport ES, AWD >> Repair and Diagnosis >> Restraints >> Passive Restraints >> Interior >> Headlining >> Removal And Installation >> Notes

Removal And Installation: Notes

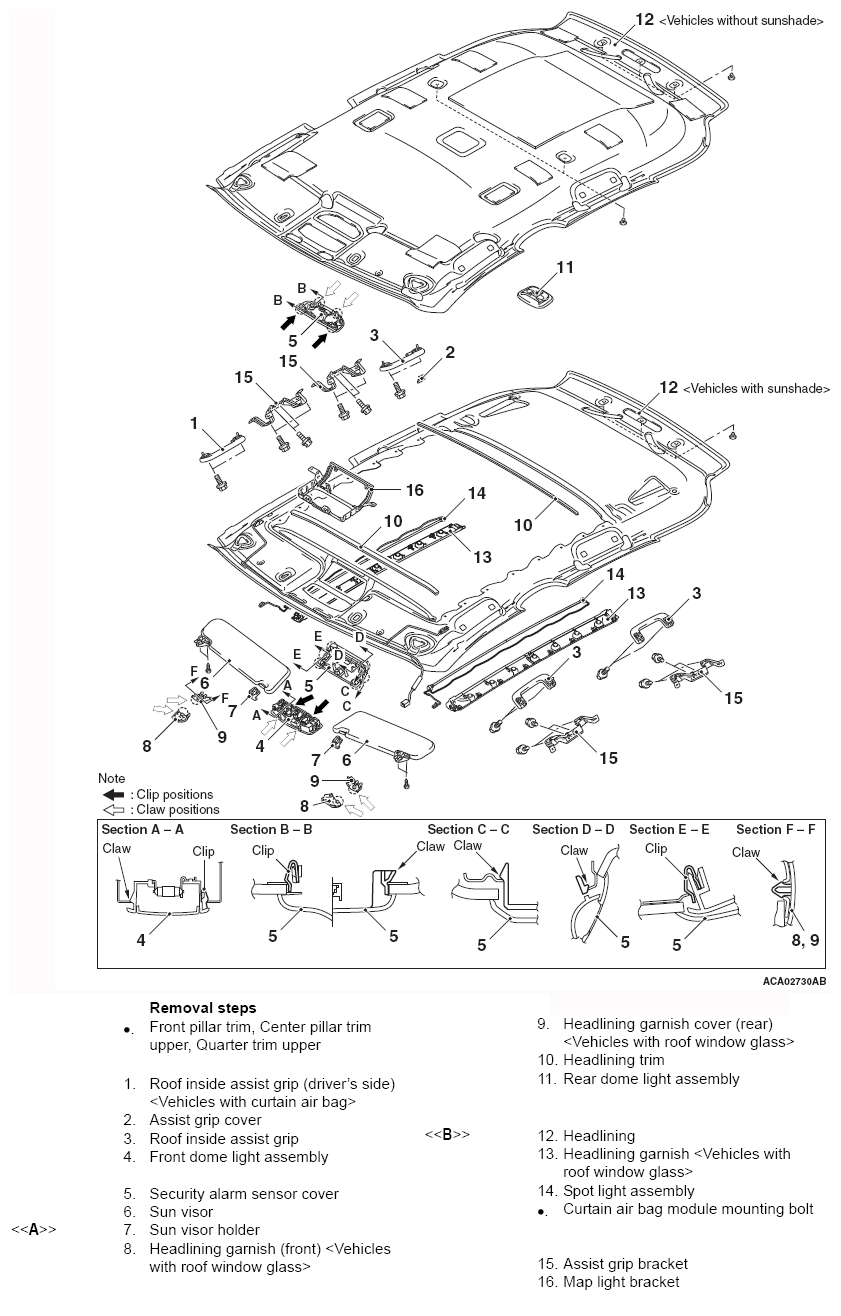

Fig 1: Identifying Headlining Remove/Install Components

G07049318

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
