Front Impact Sensor

  1. Check the front end upper bar for distortion and rust.
  2. Check the front impact sensor for dents, cracks, deformation or rust.
  3. Check the front impact sensor wiring harness for binding, check the connector for damage, and check the terminals for deformation.
    NOTE: The illustration shows the side impact sensor (RH). The position of the side impact sensor (LH) is symmetrical to this.

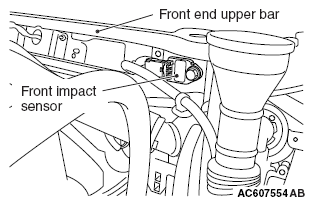

    Fig 1: Identifying Front End Upper Bar And Front Impact Sensor
    G07036159Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
