General Information: Schematic

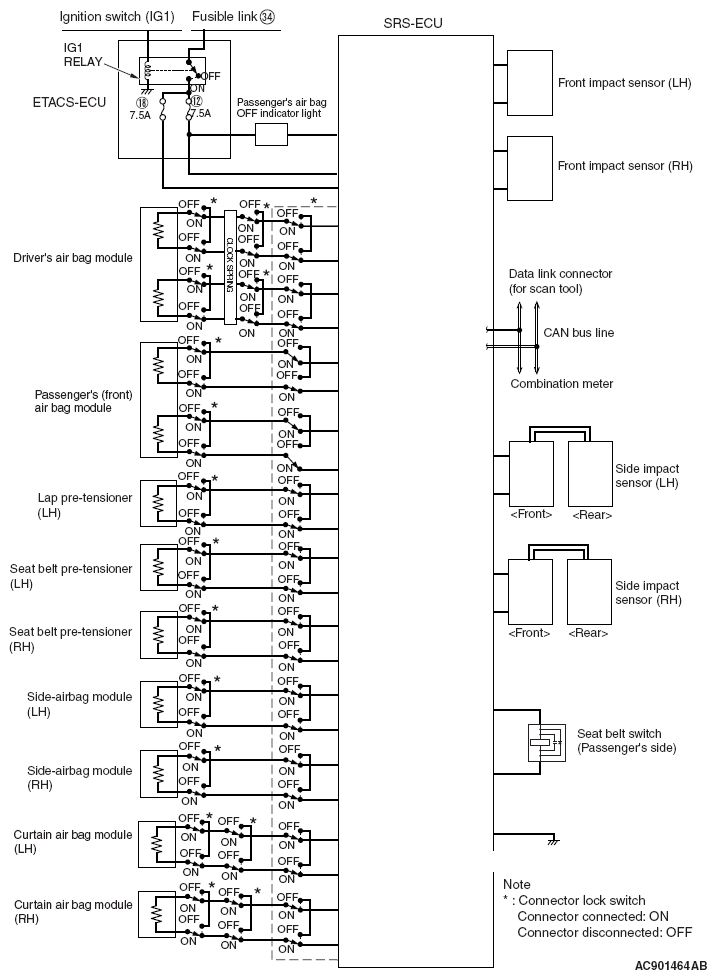

Fig 1: Supplemental Restraint System Schematic

G06479991

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
