Removal And Installation: Notes

WARNING:
  • Never attempt to disassemble or repair the curtain air bag modules. If faulty, replace it.
  • Do not drop the curtain air bag modules or allow contact with water, grease or oil. Replace it if a dent, crack, deformation or rust is detected.
  • Do not expose the curtain air bag modules to temperatures over 93°C (200°F).
  • Wear gloves and safety glasses when handling air bags that have already deployed.
  • Certain components of this vehicle, such as air bag modules, may contain perchlorate materials. Special handling may apply. For additional information, see www.dtsc.ca.gov/hazardouswaste/perchlorate.
  • An undeployed curtain air bag module should only be disposed of in accordance with the procedures (Refer to UNDEPLOYED AIR BAG MODULE DISPOSAL  .
  • When removing and installing the front passenger seat, be sure to carry out accuracy check occupant classification sensor after the seat has been installed in the vehicle. (ON-VEHICLE SERVICE  ).

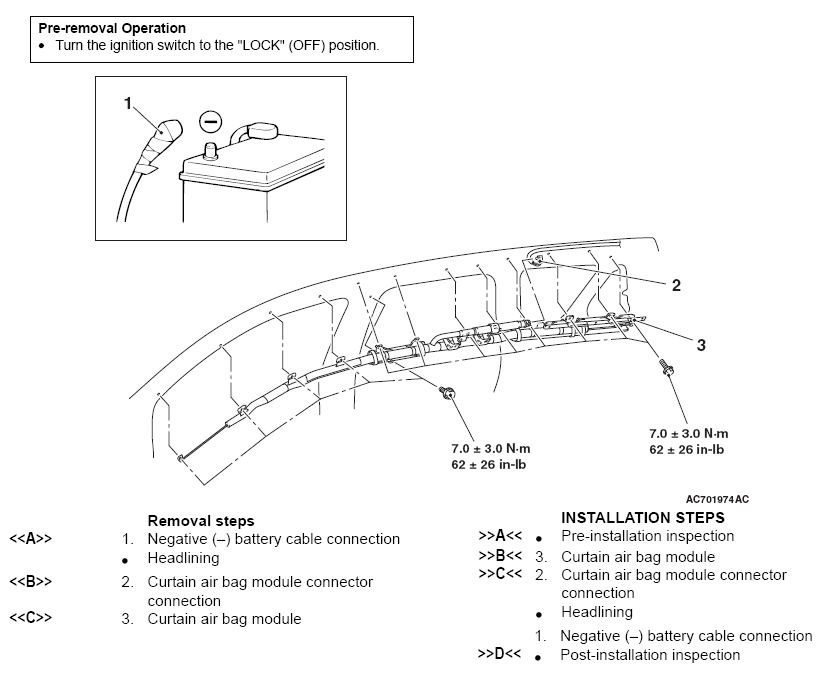

    Fig 1: Curtain Air Bag Module Replacement Components With Torque Specifications
    G07036206Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
