Removal And Installation

WARNING: This page is about a different car, the 2012 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

To remove the driver air bag module, refer to SERVICE PRECAUTIONS and Air Bag Module(s) and Clock Spring P.52B-439.
When the steering wheel sensor is replaced, always carry out calibration to make ASC-ECU learn the neutral point. (Refer to STEERING WHEEL SENSOR CALIBRATION . < Vehicles with ASC >

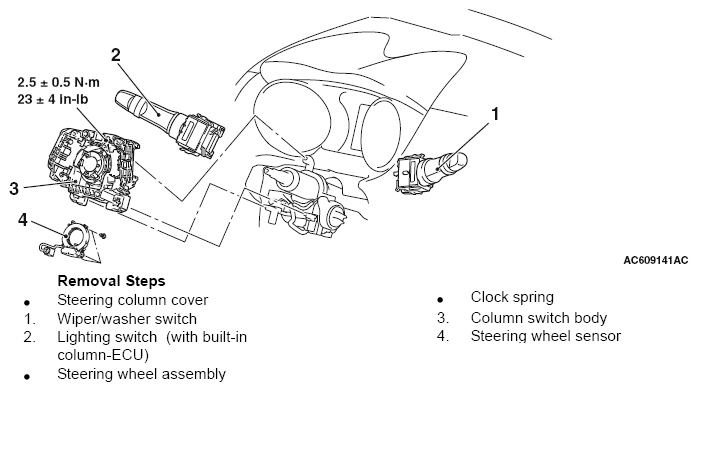

Fig 1: Column Switch Removal And Installation With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
