Removal And Installation: Notes

WARNING: This page is about a different car, the 2012 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Do not apply grease or lubricant to the switch and the switch installation section to avoid malfunction of the switch. In addition, do not use gloves which have grease on them.

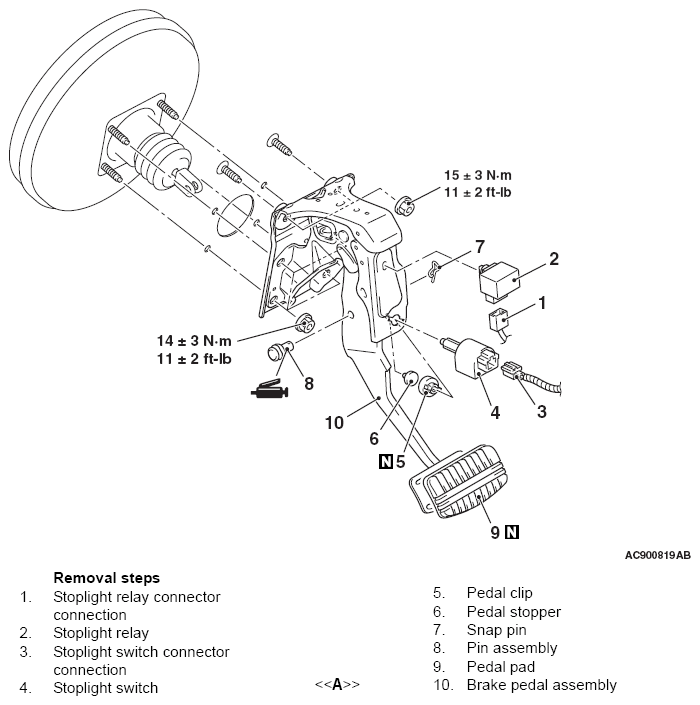

Fig 1: Brake Pedal Removal And Installation With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
