Engine Compartment
Engine Compartment

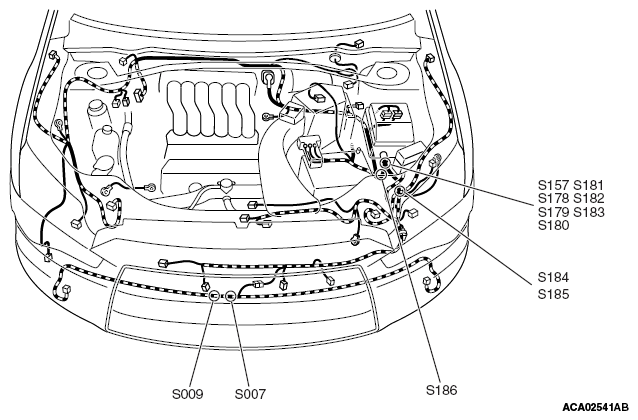

Fig 1: Identifying Splice Locations - Engine Compartment
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
