Registration flow chart

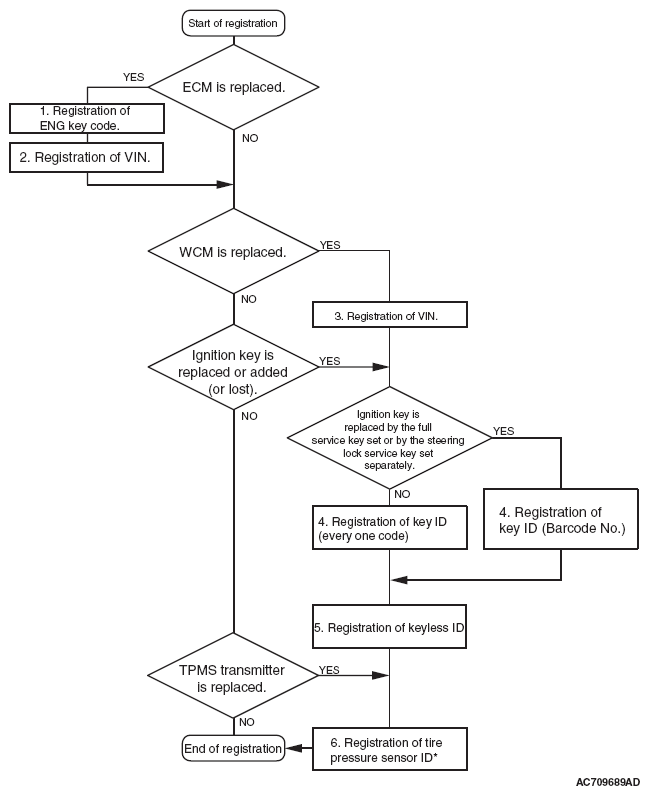

Fig 1: Registration Flow Chart
G07042700Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
