Power Steering - Lancer Evolution
>>
Power Steering Oil Pump Assembly
>>
Removal And Installation
>>
Notes
Removal And Installation: Notes

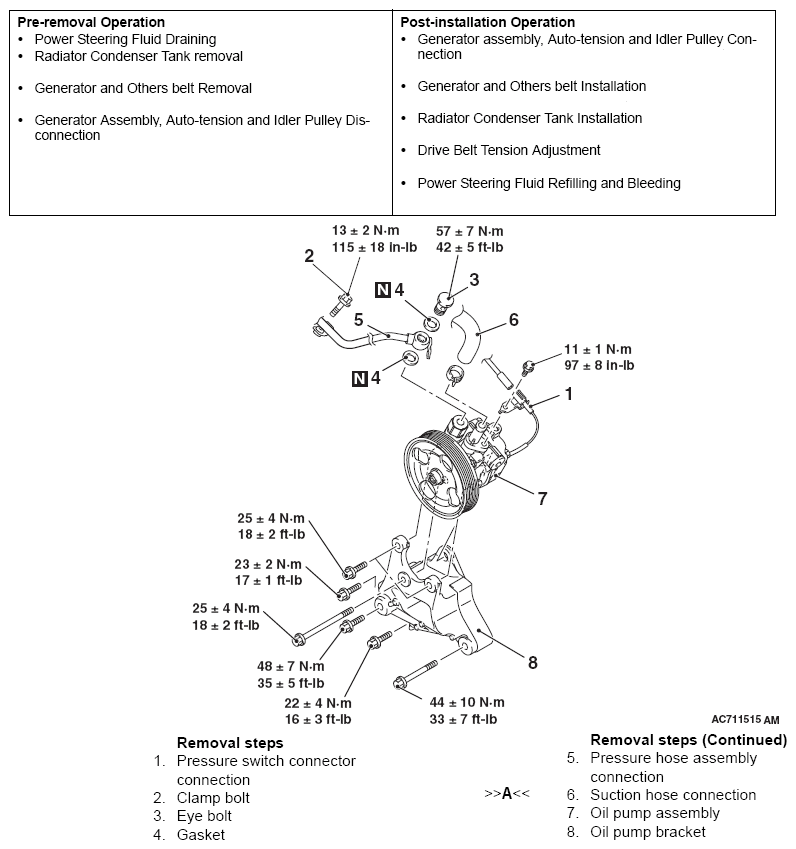

Fig 1: Removal & Installation Of Power Steering Oil Pump Assembly With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
