Disassembly And Assembly: Notes

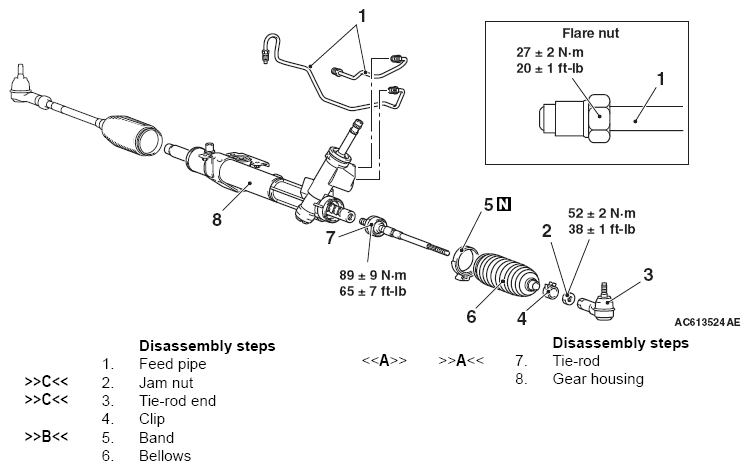

Fig 1: Disassembly & Assembly Of Power Steering Gear Box & Linkage With Torque Specifications
G06677785Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
