Multivision Display

WARNING: This page is about a different variant/trim than selected.

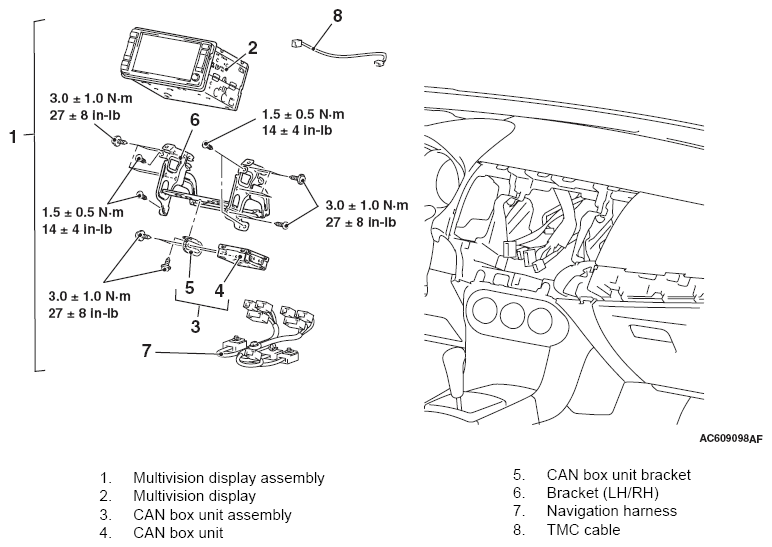

Fig 1: Multivision Display Components With Torque Specifications
G07667321Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
