Side Structure Reinforcement

The ring structure of the side structure reinforcement has been adopted to improve the collision characteristics and the rigidity of the whole vehicle.

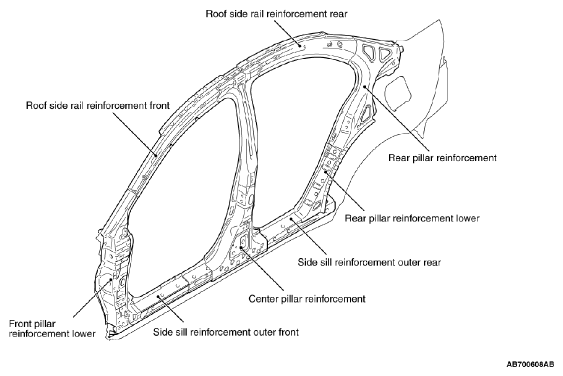

Fig 1: Side Structure Reinforcement Component Locations
G11486477Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
