Headlight Support

The crush box structure, which has an octagonal cross-section at the front end of the front sidemember, has been adopted. This structure can effectively absorb energy upon frontal impact and reduces the vehicle repair cost caused by a light collision.
The bolt-on headlight support panel upper is used to improve maintainability.
An aluminum front bumper reinforcement has been adopted to improve the body rigidity, handling stability, and riding comfort.

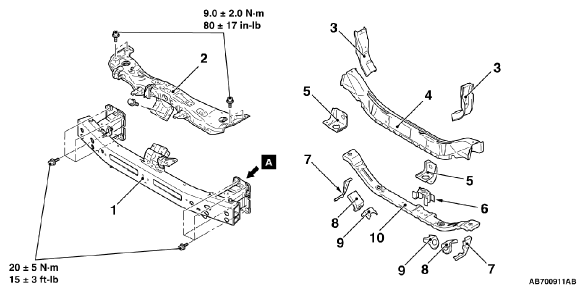

Fig 1: Front Bumper Reinforcement, Headlight Support And Hardware With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

PART DESCRIPTION

1.	Front bumper reinforcement
2.	Headlight support panel upper
3.	Front end crossmember gusset
4.	Front end crossmember upper
5.	Radiator bracket lower A
6.	Front end crossmember bulkhead
7.	Radiator bracket lower B
8.	Shipping hook front
9.	Shipping reinforcement front
10.	Front end crossmember lower

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

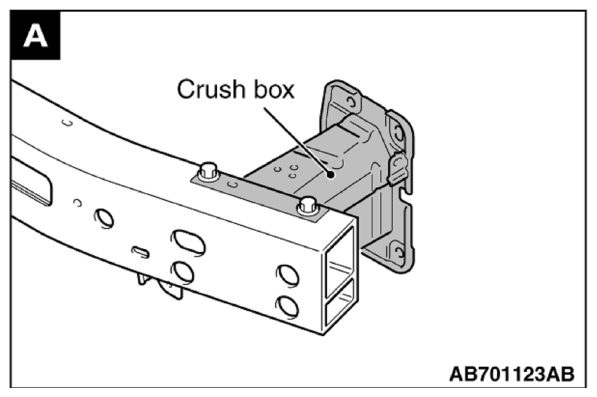

The crush box structure has been changed to straight type with an octagon cross-section so that the structure can effectively absorb energy from the impact at the time of collision.
