Quarter Inner (Partial Replacement): Notes

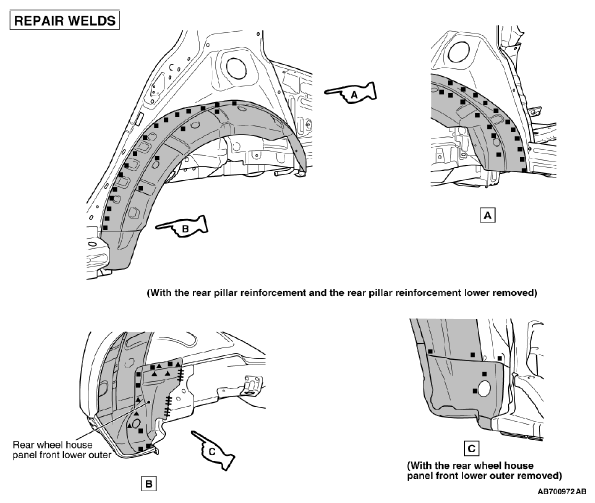

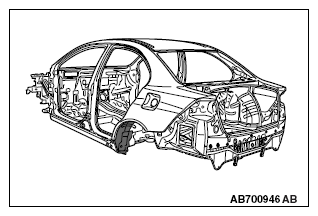

Fig 1: Quarter Inner Panel Component Location (Partial Replacement)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

SYMBOL DESCRIPTION

Symbol	Operation description
	Spot welding
	MIG plug welding (■ : indicates two panels to be welded : indicates three panels to be welded)
	MIG spot welding
	MIG arc welding (continuous)
	Braze welding
	Anti-corrosion agent application locations (Use access holes to apply liberally to butt-welded joints.)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NOTE:

• Refer to the Quarter Outer  for the welding points with the quarter outer.
• Refer to the QUARTER INNER  for the welding points with the rear pillar reinforcement and the rear pillar reinforcement lower.
