Note On Repair Work: Removal

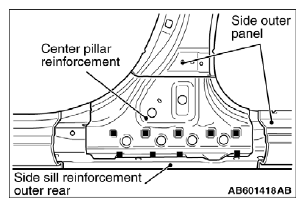

1. To cut the welding points between the center pillar reinforcement and side sill reinforcement outer rear, cut the side outer panel as shown.

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

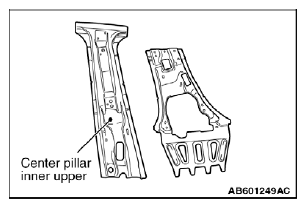

2. After removing the center pillar, remove the center pillar inner upper left on the body side.

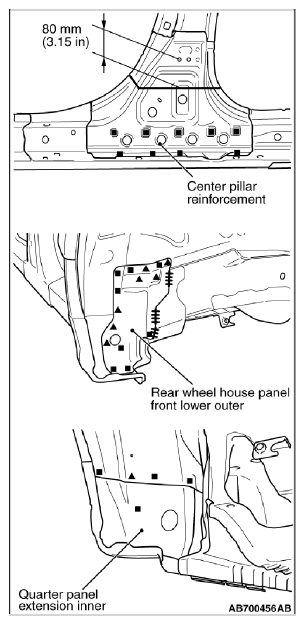

1. When installing the side sill reinforcement outer rear, cut the center pillar reinforcement 80 mm (3.15 inches) downward from the installation hole of the rear door hinge because the center pillar reinforcement interferes with it. For the rear wheel house, remove the rear wheel house panel front lower outer and quarter panel extension inner because the quarter panel extension inner interferes with the rear wheel house panel front lower outer.
   Fig 1: Center Pillar Reinforcement Installation Cut Lines, Measurements And Locations

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

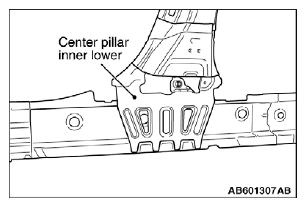

2. After removing the side sill reinforcement outer rear, remove the center pillar inner lower.

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

INSTALLATION

1. Remove the center pillar inner upper from the new center inner pillar, and install the center inner pillar to the body.

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2. Remove the side sill reinforcement outer front from the new side sill reinforcement, and install the side sill reinforcement to the body.

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

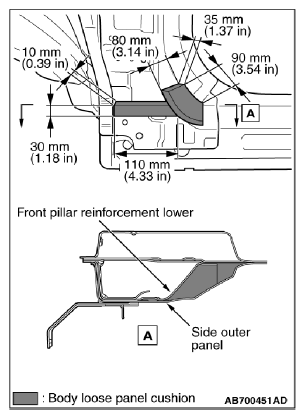

3. When installing the new front floor side sill outer, machine the body loose panel cushion (MR535301 or MR435765) for replacement as shown and apply it to the body side because the sound dampening foam material cannot be filled into the front pillar.
   Fig 2: Front Floor Side Sill Outer Body Loose Panel Cushion Installation Specifications And Locations (1 Of 2)

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

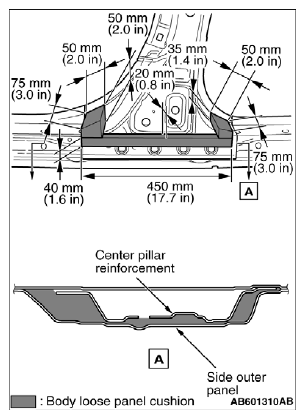

4. When installing the new front floor side sill outer, machine the body loose panel cushion (MR535301 or MR435765) for replacement as shown and apply it to the body side because the sound dampening foam material cannot be filled into the center pillar.
   Fig 3: Front Floor Side Sill Outer Body Loose Panel Cushion Installation Specifications And Locations (2 Of 2)

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
5. Assemble the front floor side sill outer, bolt and tape the hole and flange with aluminum tape, then fill the hole with sound dampening foam material as shown in the figure of the instructions.

   Sound dampening foam material: 3M™ AAD ULTRA

   PRO Panel foam-Yellow

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

6. Wait 2 hours after filling the sound dampening foam material to remove the bolt and aluminum tape, then melt the sound dampening foam material with a soldering gun so a clip, etc. can thoroughly be inserted in the hole filled with sound dampening foam material.

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
