Section 18 (Keyless Operation System (Kos) - Lancer Evolution)
>>
General Information
>>
Construction Diagram
>>
System Configuration
System Configuration
WARNING:
This page is about a different variant/trim than selected.

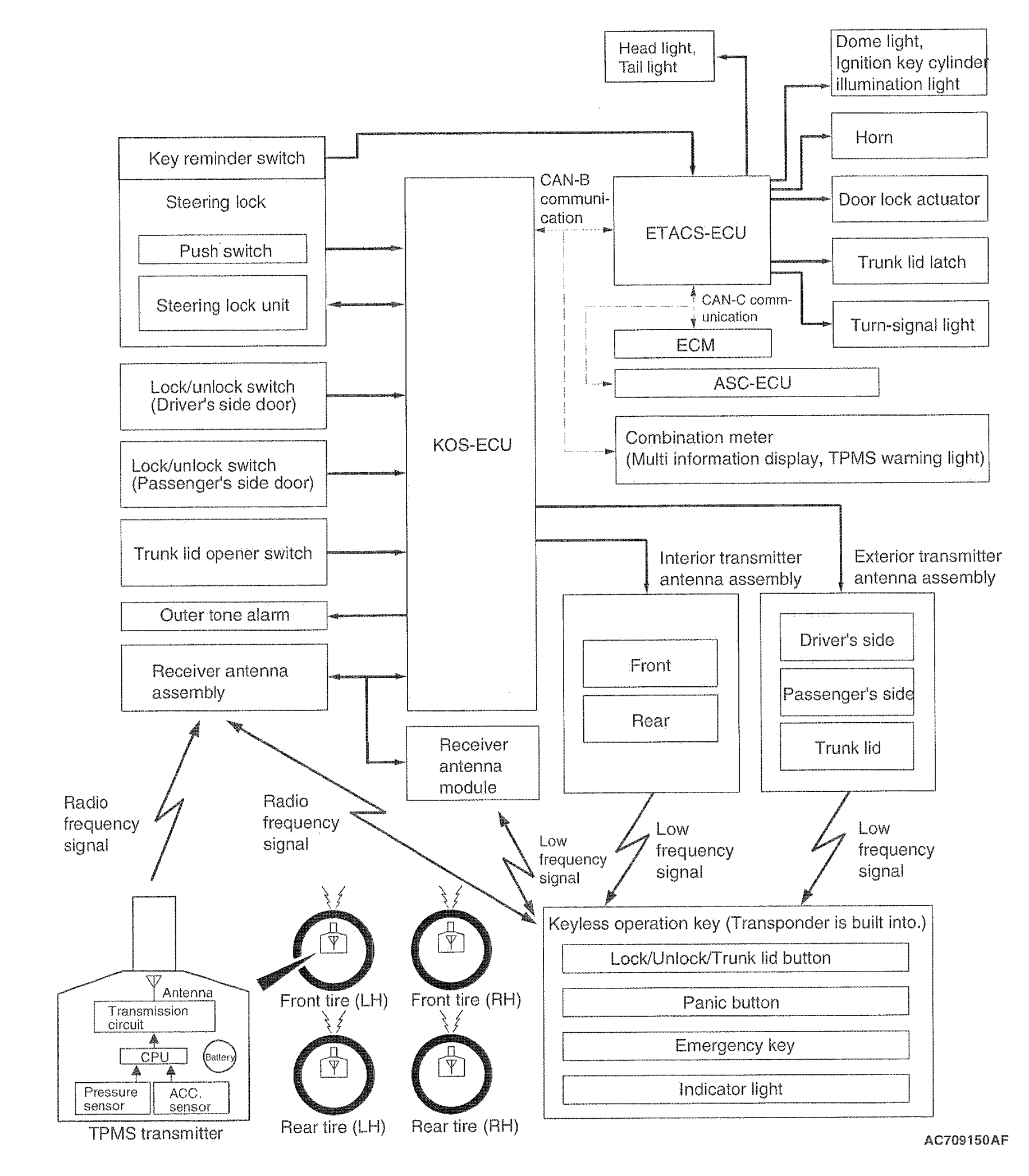

Fig 1: System Configuration Diagram
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
