Accelerator Pedal
>>
Removal And Installation
>>
Vehicles With Aluminum Pedal Pad
Vehicles With Aluminum Pedal Pad

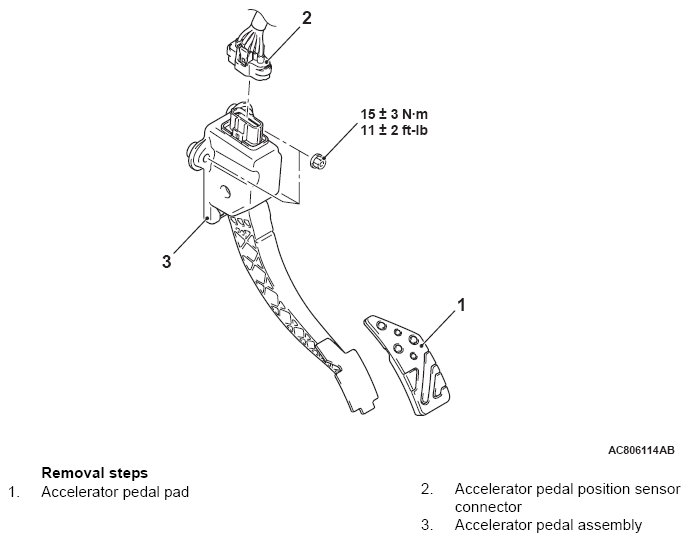

Fig 1: Accelerator Pedal Components With Torque Specification (Vehicles With Aluminum Pedal Pad)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
