Disassembly And Reassembly: Notes

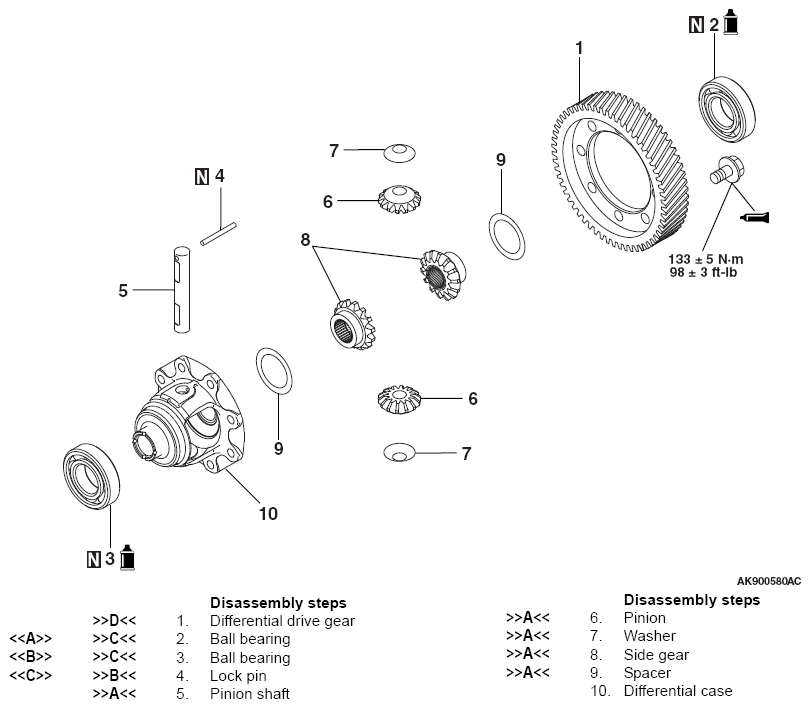

Fig 1: Disassembling Order Of Differential Components With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
