Removal And Installation: Notes

CAUTION: Before removing the steering wheel and driver's air bag module assembly, refer to SERVICE PRECAUTIONS and DRIVER'S AIR BAG MODULE AND CLOCK SPRING .

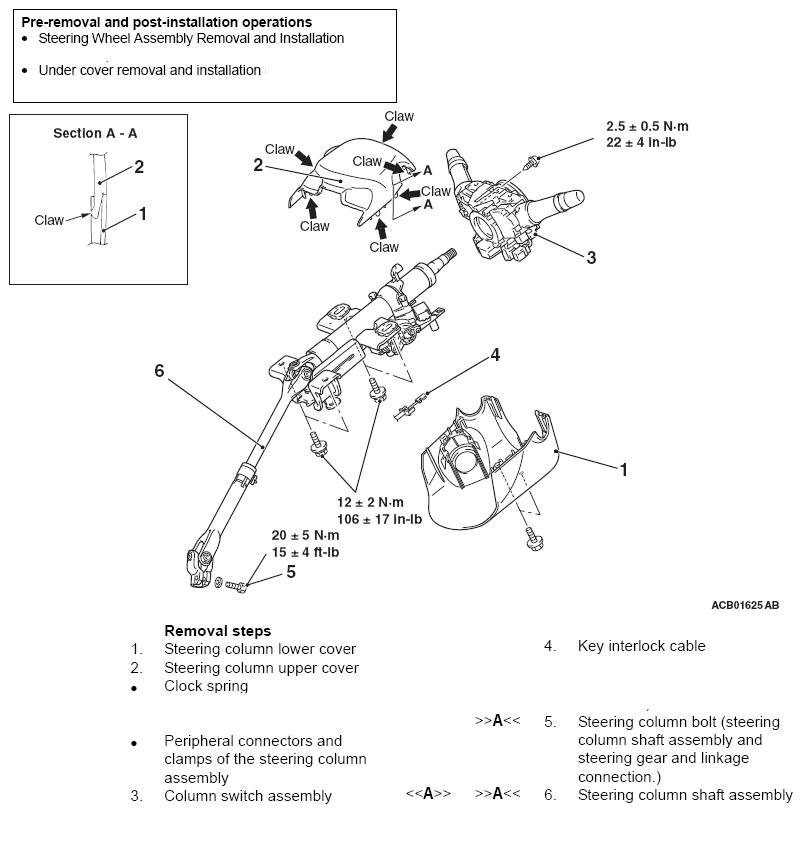

Fig 1: Removing Order Of Steering Shaft Components With Torque Specifications
G08301155Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
