Home >> Mitsubishi >> 2012 >> i-MiEV ES >> Repair and Diagnosis >> Steering >> Power Steering - With Diagnostics >> Power Steering Gear Box And Linkage >> Disassembly And Assembly >> Notes

Disassembly And Assembly: Notes

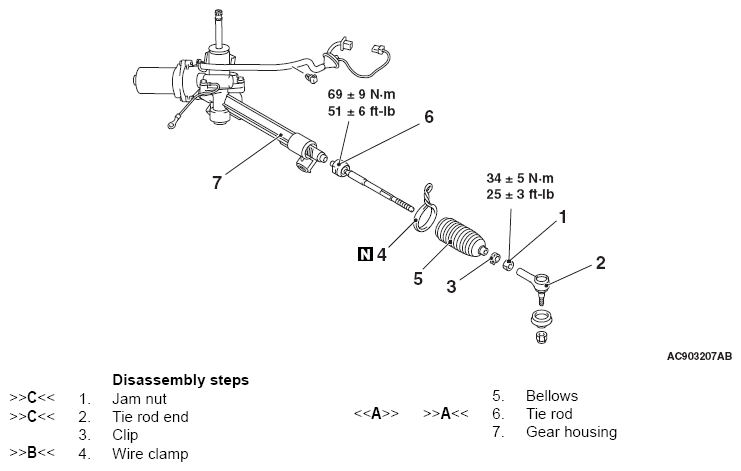

Fig 1: Disassembling Order Of Tie Rod Components With Torque Specifications

G08301170

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
