Home >> Mitsubishi >> 2012 >> i-MiEV ES >> Repair and Diagnosis >> Restraints >> Passive Restraints >> Interior >> Seat Assembly >> Rear Seat Assembly >> Removal And Installation >> Notes

Removal And Installation: Notes

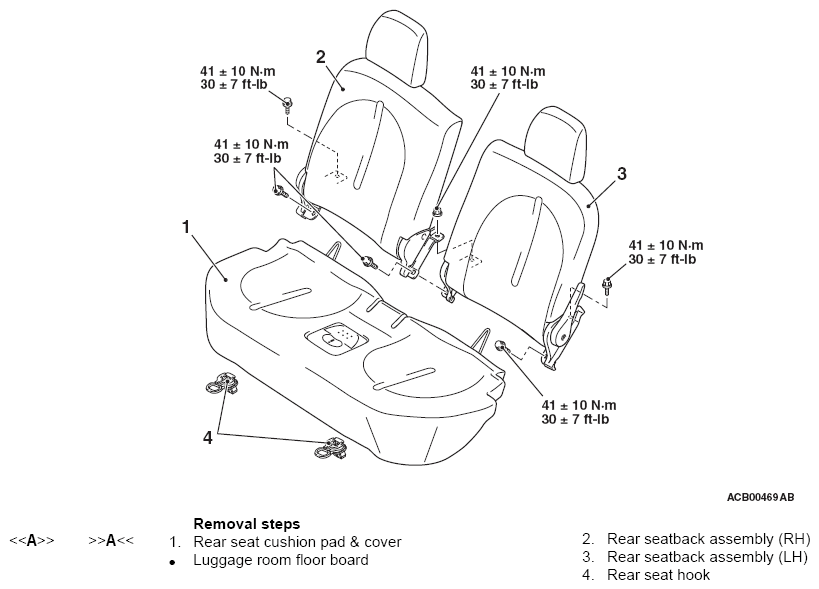

Fig 1: Removing Order Of Rear Seat Assembly With Torque Specifications

G08303452

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
