Disassembly And Reassembly: Notes

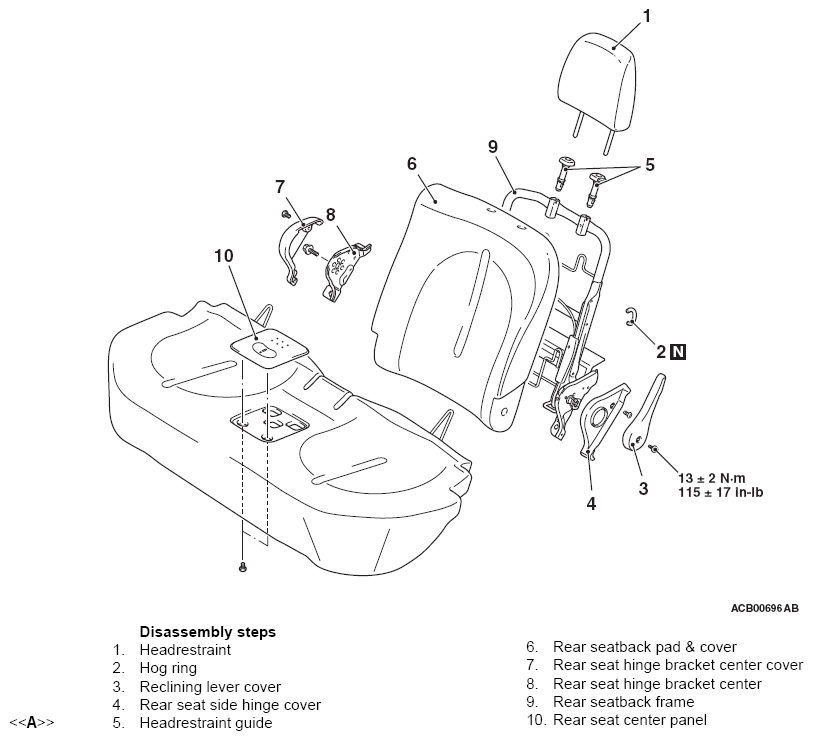

Fig 1: Disassembling Order Of Seat Assembly With Torque Specification

G08303455

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
