Removal And Installation: Notes

CAUTION:
  • If the water pump is dropped, do not reuse that water pump.
  • Do not operate the water pump when the coolant is empty. If the water pump is operated, the water pump service life may be reduced. Therefore, do not reuse that water pump.

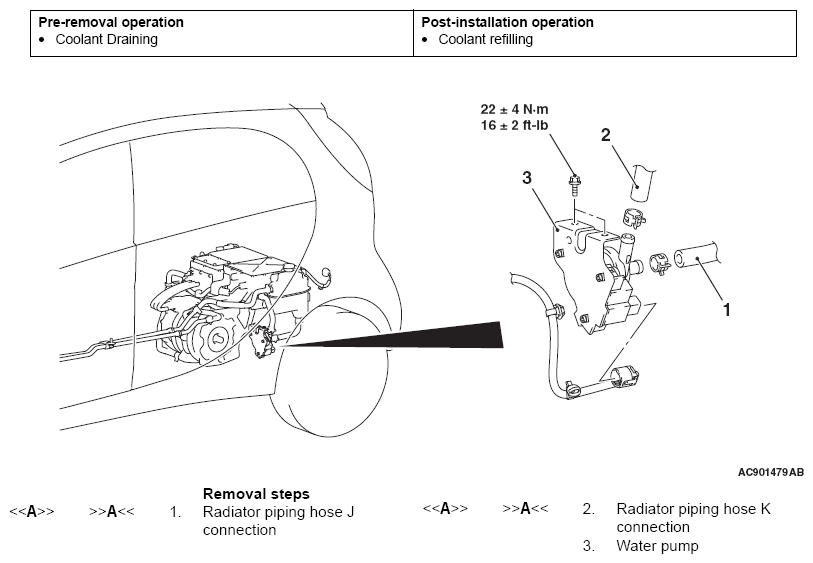

    Fig 1: Identifying Water Pump Components
    G08297413Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
