Disassembly And Assembly: Notes

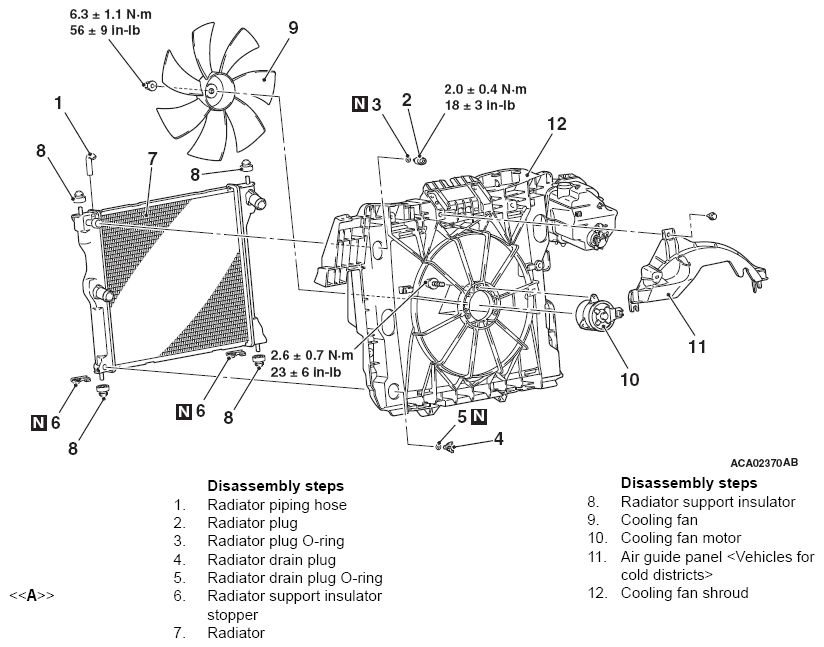

Fig 1: Identifying Radiator Assembly Components - 2012
G08297422Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

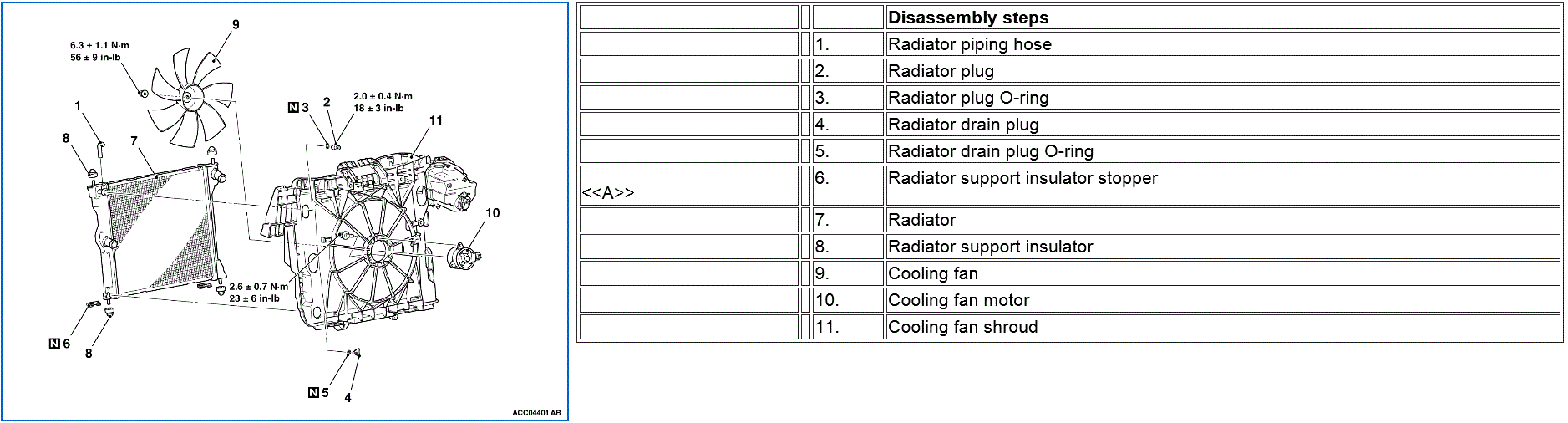

Fig 2: Identifying Radiator Assembly Components - 2014
G00551319Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
