Horn Relay Check

Battery voltage	Terminal number	Normal condition
Not energized	4 - 1	No continuity
With current supply [terminal 2 (+), terminal 3 (-)]	4 - 1	Continuity exists (2 ohms or less)

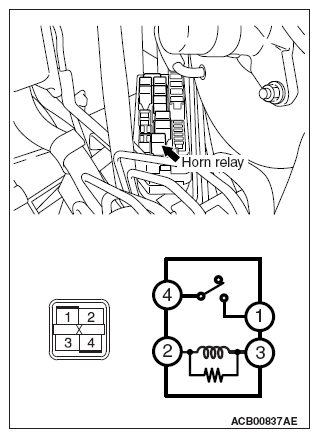

Fig 1: Identifying Horn Relay Connector Terminals

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
